Technical Content
Part Image

21033814860 - HARTING

Description: PCB adapter, Angled, incl. housing, for front mounting, Reflow soldering termination (THR), Rated current: ‌0.5 A, Contacts: 8, Copper alloy, Au over Ni, Mating side, Coding: X-coding, Liquid crystal polymer (LCP)

Download 21033814860 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21033814860 - HARTING - PCB symbol
click to zoom
PCB Footprints

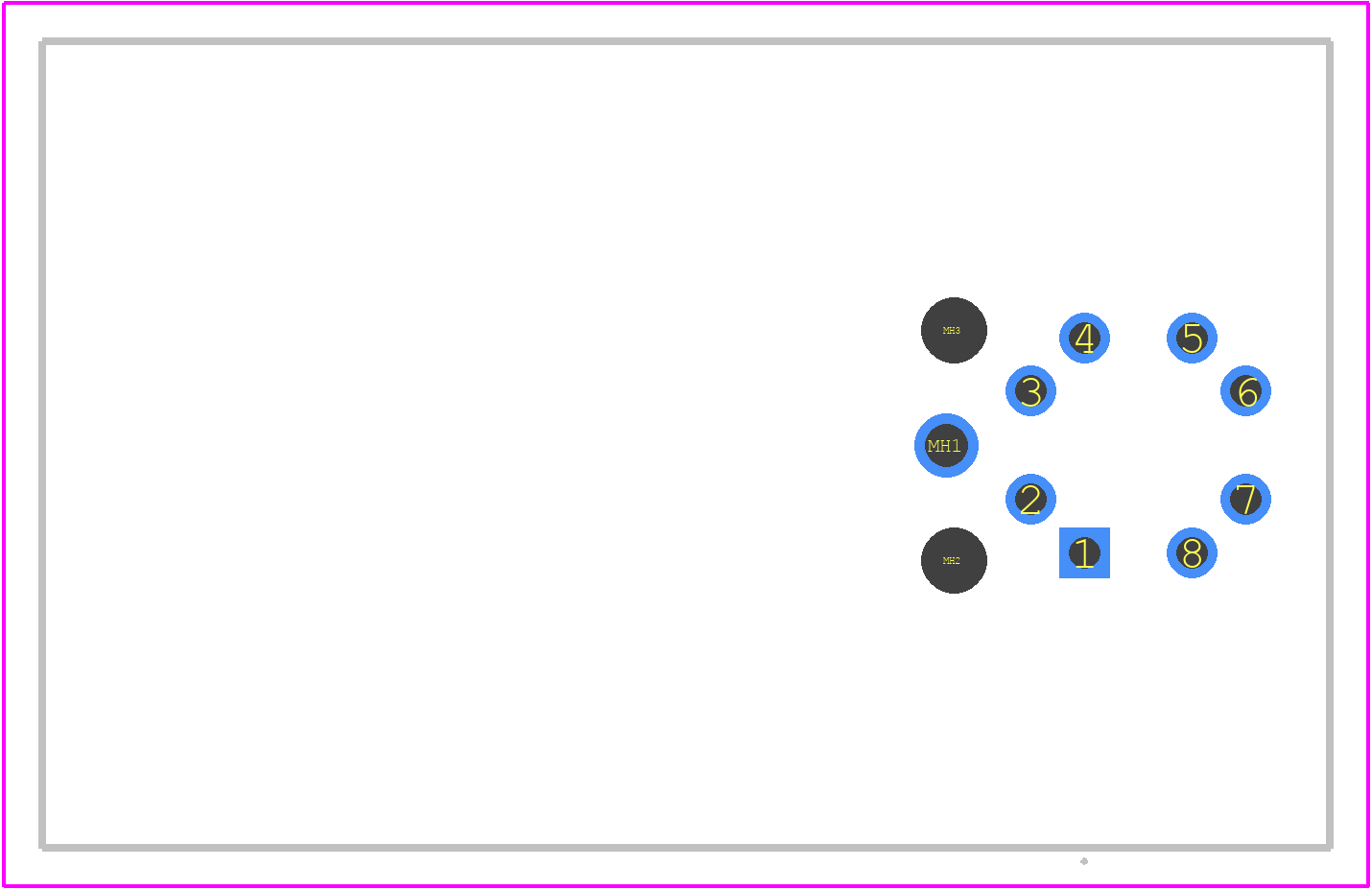

21033814860 - HARTING PCB footprint - Other - Other - 21033814860-5
click to zoom
3D Models
21033814860 - HARTING - 3D model - Other - 21033814860-5
click to zoom

21033814860 Details

  • Manufacturer Part Number:

    21033814860

  • Manufacturer:

    HARTING Technology Group

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21033814860 Overview

Use the download button to access the 21033814860 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21033, or try a keyword search, such as Other Circular Connectors
