2107-H-RC - Bourns

Description: Inductor High Current Toroid 33uH/22.8uH 15% 1KHz 5A 29mOhm DCR RDL

Download 2107-H-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2107-H-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

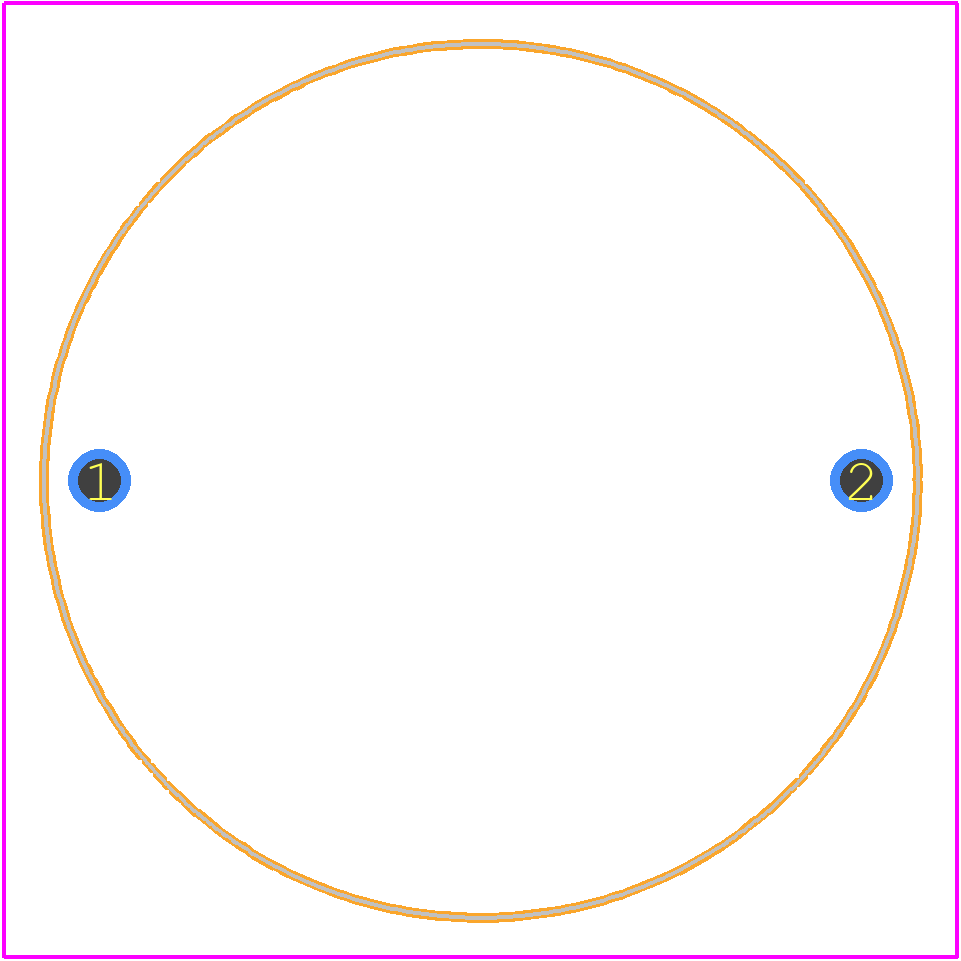

2107-H-RC - Bourns PCB footprint - Other - Other - 2107-H-RC-4
click to zoom
3D Models
2107-H-RC - Bourns - 3D model - Other - 2107-H-RC-4
click to zoom

2107-H-RC Details

  • Manufacturer Part Number:

    2107-H-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Tunisia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Hortizontal Mount

  • DC Resistance:

    0.029 Ω

  • Inductance-Nom (L):

    33 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    0.8636 mm

  • Lead Spacing:

    19.05 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    21.844 mm

  • Package Length:

    11.43 mm

  • Package Style:

    Toroidal

  • Rated Current-Max:

    5 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    AXIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

2107-H-RC Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a ground plane underneath the device to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • Bourns recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging to prevent damage.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the device's performance may degrade at extreme temperatures. Consult with Bourns or a qualified engineer for specific application guidance.
  • Yes, the 2107-H-RC is designed to withstand vibrations up to 10 G peak acceleration. However, it's crucial to ensure proper PCB mounting and secure the device to prevent mechanical stress.
  • Start by verifying the device's pinout and connections, then check for proper power supply and signal integrity. Consult the datasheet and application notes for guidance on troubleshooting common issues.
