Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and to minimize thermal resistance.
To select the correct resistor value, consider the maximum current and voltage ratings of the 2110-H-RC, as well as the desired power rating. Bourns provides a resistor value calculator on their website, which can help with the selection process.
The TCR of the 2110-H-RC is ±100 ppm/°C, which means that the resistance value may vary by ±0.01% for every 1°C change in temperature. This information is not explicitly stated in the datasheet but can be found in Bourns' application notes or by contacting their technical support.
The 2110-H-RC is a general-purpose resistor and may not be suitable for high-frequency applications due to its inductive properties. For high-frequency applications, consider using a resistor with a lower inductance, such as a thin-film resistor or a resistor specifically designed for high-frequency use.
The 2110-H-RC has a maximum operating temperature of 155°C. While it can operate at high temperatures, its performance and reliability may degrade over time. For high-temperature applications, consider using a resistor with a higher temperature rating, such as a ceramic or metal-film resistor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2110-H-RC Overview

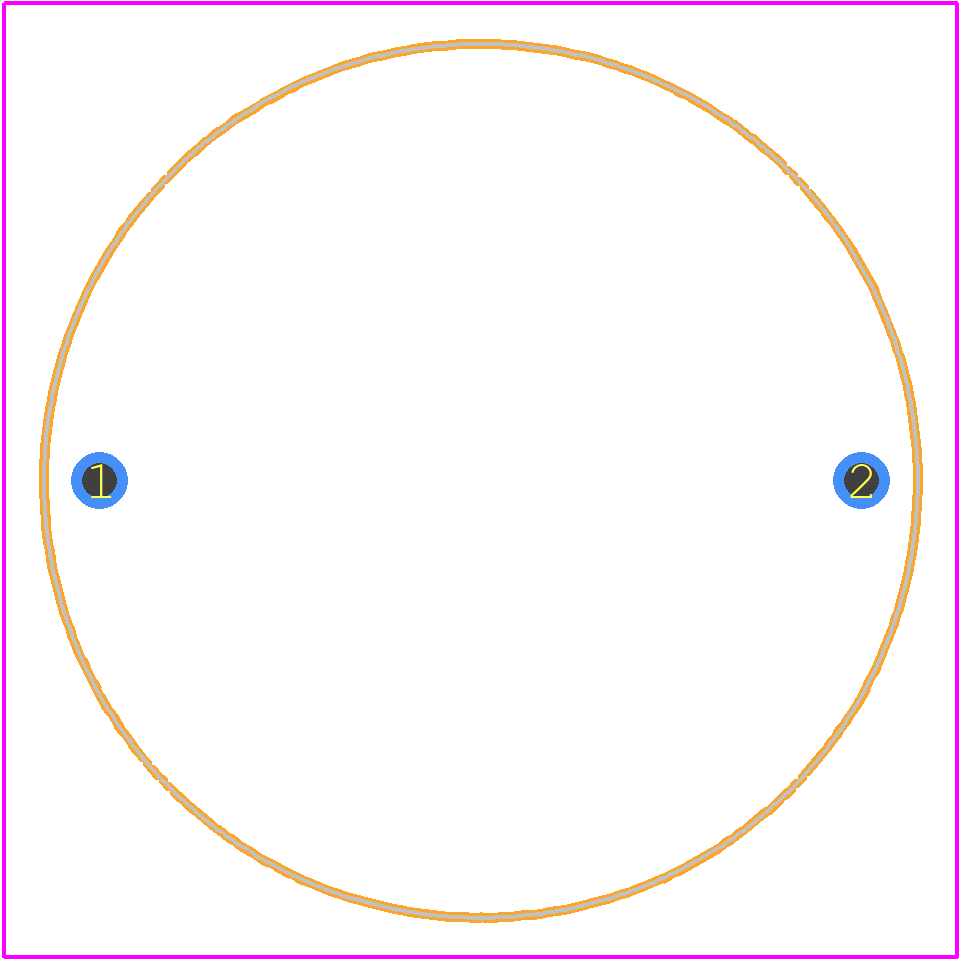

Use the download button to access the 2110-H-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2110-,
or try a keyword search, such as Fixed Inductors
