2120953-1 - TE Connectivity

Description: Body Features: Shell Base Material Zinc Die Cast | Shell Plating Material Nickel | Circular Connector Insulation Material Type Polyamide | Configuration Features: Number of Positions 8 | Contacts Preloaded Yes | Number of Power Positions 0 | Number of Signal Positions 8 | Contact Features: Circular Connector Contact Type Socket | Reverse Gender Yes | Contact Current Rating (Max) .5 AMP | Contact Layout Arrangement Circular | Mechanical Attachment: Mating Retention With | Polarization Code X | Connector Moun

Download 2120953-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2120953-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

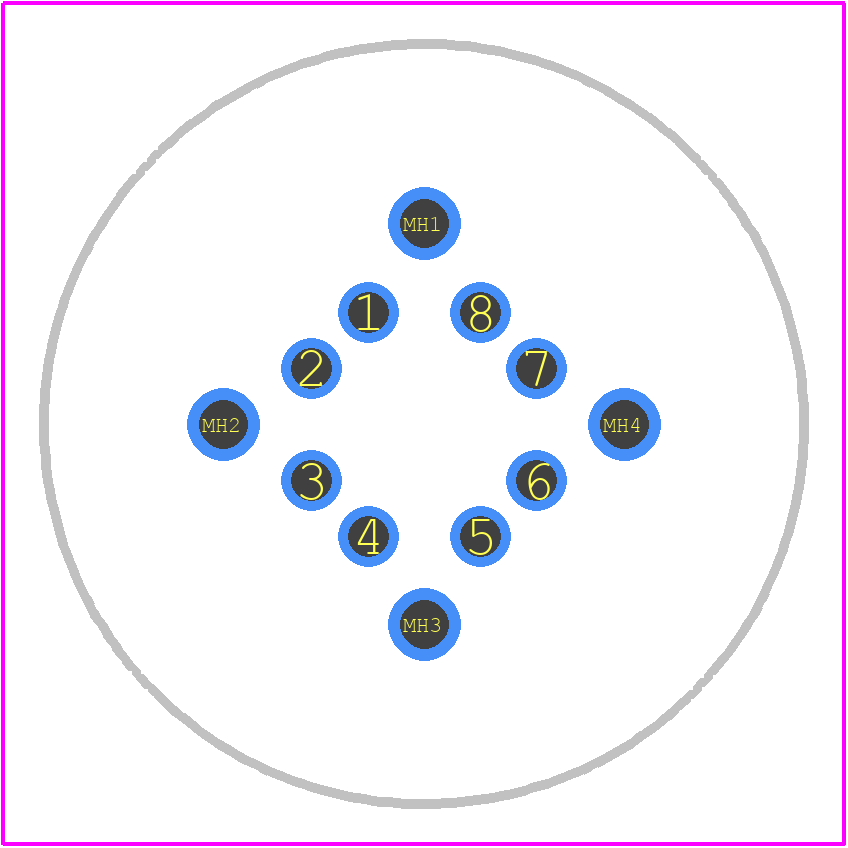

2120953-1 - TE Connectivity PCB footprint - Other - Other - 2120953-1-1
click to zoom
3D Models
2120953-1 - TE Connectivity - 3D model - Other - 2120953-1-1
click to zoom

2120953-1 Details

  • Manufacturer Part Number:

    2120953-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    28 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    X

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.5 A

  • Shell Finish:

    NICKEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

2120953-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2120953-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2120953-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature specifications.
  • The 2120953-1 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consult with TE Connectivity or a qualified engineer to determine the connector's suitability and any necessary precautions.
