Part Image

21236NA - Apem

Description: SWITCH TOGGLE SPDT 4A 125V

Download 21236NA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21236NA - Apem - PCB symbol
click to zoom
PCB Footprints

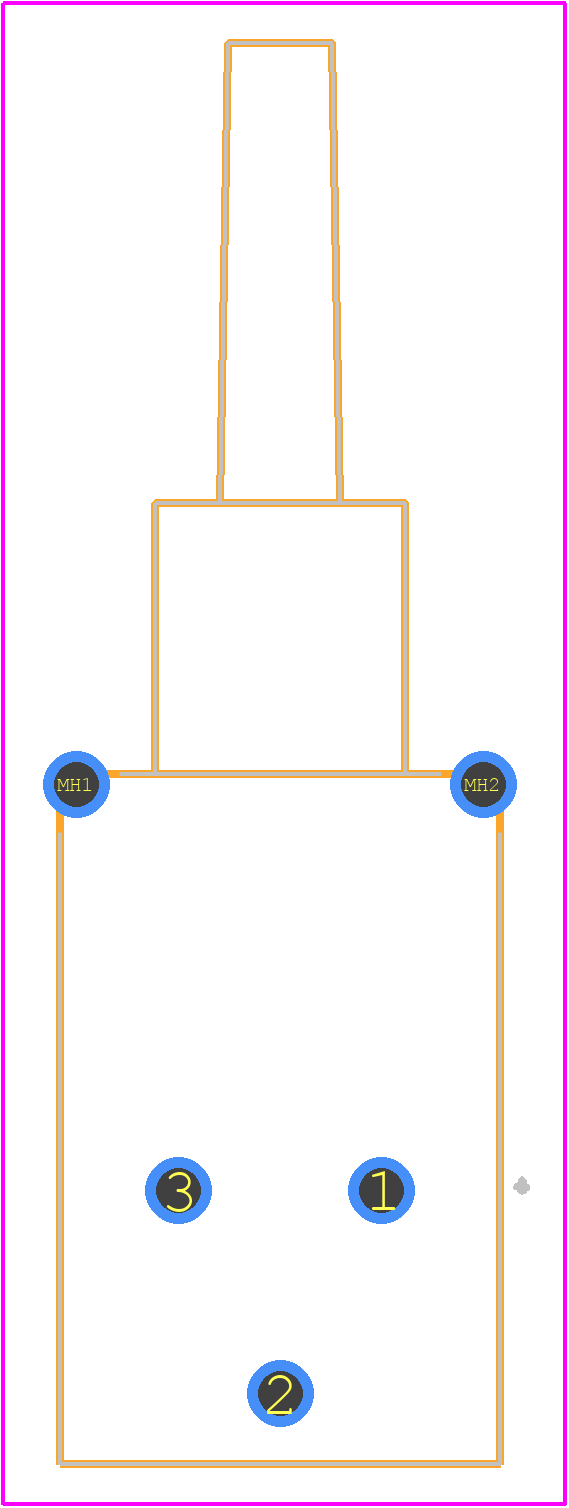

21236NA - Apem PCB footprint - Other - Other - 21236NA-2
click to zoom
3D Models
21236NA - Apem - 3D model - Other - 21236NA-2
click to zoom

21236NA Details

  • Manufacturer Part Number:

    21236NA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    APEM Inc

  • YTEOL:

    9

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    7.7 mm

  • Body Height:

    17 mm

  • Body Length or Diameter:

    11 mm

  • Contact (AC) Max Rating R Load:

    4A@125VAC

  • Contact Current(AC)-Max:

    4 A

  • Contact Current(DC)-Max:

    4 A

  • Contact (DC) Max Rating R Load:

    4A@30VDC

  • Contact Function:

    ON-ON

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    20000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BULK

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

21236NA Frequently Asked Questions (FAQs)

  • The recommended torque for the 21236NA switch is 0.5 Nm to 1.5 Nm (0.36 lbf.in to 1.06 lbf.in) to ensure proper operation and prevent damage.
  • Yes, the 21236NA switch is designed to withstand high-vibration environments and can operate in applications with vibrations up to 10g (98 m/s²) according to IEC 60068-2-6.
  • Yes, the 21236NA switch is designed to operate in harsh environments and can withstand temperatures from -40°C to 85°C (-40°F to 185°F) and humidity up to 95% RH.
  • The expected lifespan of the 21236NA switch is 1 million cycles, making it suitable for applications that require high reliability and long-term operation.
  • Yes, APEM Inc offers customization options for the 21236NA switch, including custom terminations, actuator styles, and circuit configurations. Contact APEM Inc for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21236NA Overview

Use the download button to access the 21236NA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21236, or try a keyword search, such as Toggle Switches
