2125201010 - Molex

Description: Mini-Fit Max Vertical Header, Dual Row, Through Hole, 10 Circuits, Tin (Sn) Plating, Black, Glow-Wire Capable

Download 2125201010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2125201010 - Molex - PCB symbol
click to zoom
PCB Footprints

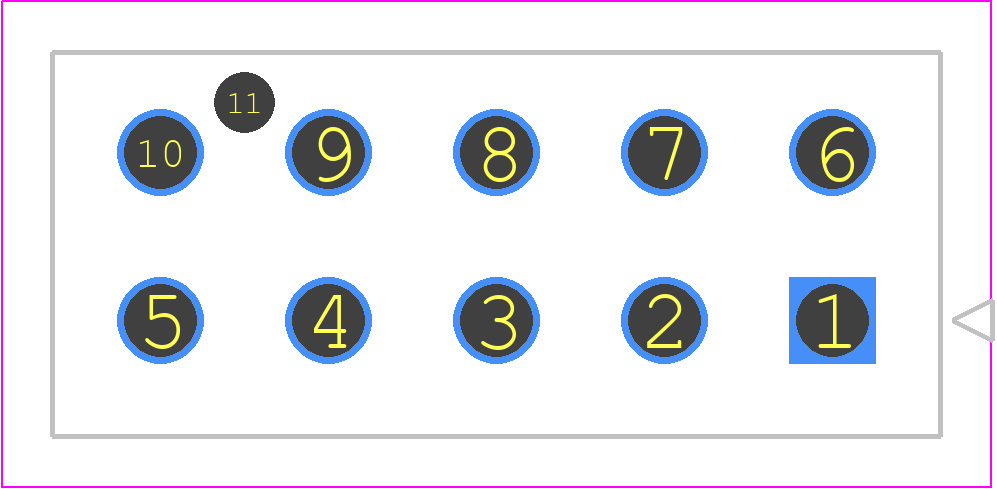

2125201010 - Molex PCB footprint - Other - Other - 2125201010
click to zoom
3D Models
2125201010 - Molex - 3D model - Other - 2125201010
click to zoom

2125201010 Details

  • Manufacturer Part Number:

    2125201010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 20.5A, POLARIZED

  • Body Breadth:

    0.4 inch

  • Body Depth:

    1 inch

  • Body Length:

    0.87 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    212514

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

2125201010 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 2125201010 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 2125201010 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 10G.
  • The maximum operating temperature for the 2125201010 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • Yes, the 2125201010 connector is designed for automated assembly processes. It has a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The typical lead time for delivery of the 2125201010 connector varies depending on the quantity and availability. However, Molex typically quotes a lead time of 6-12 weeks for standard orders.
