2132272410 - Molex

Description: 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount, Vertical, 0.10µm Gold (Au) Plating, 24 Circuits, Natural

Download 2132272410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2132272410 - Molex - PCB symbol
click to zoom
PCB Footprints

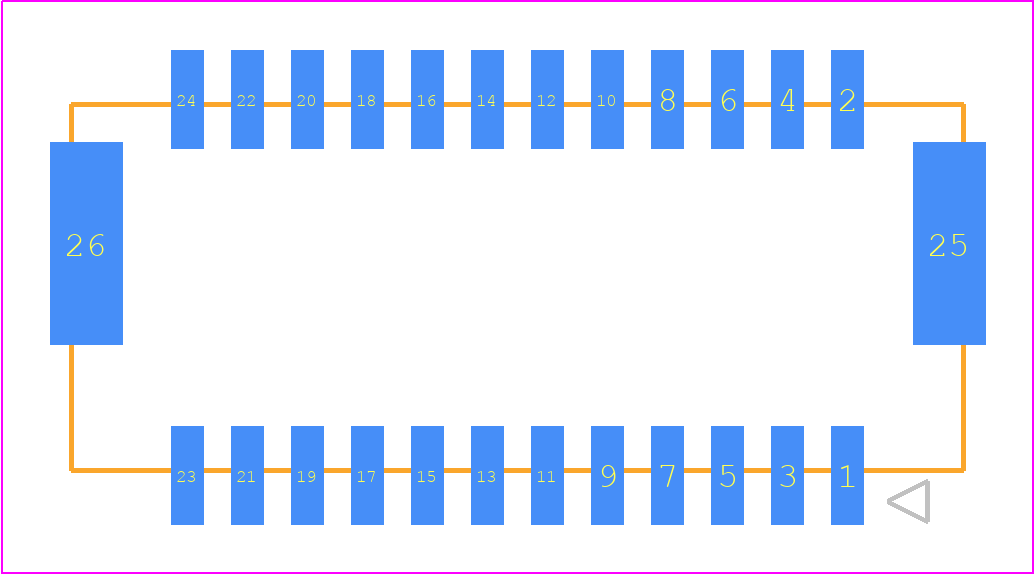

2132272410 - Molex PCB footprint - Other - Other - 21322724YY
click to zoom
3D Models
2132272410 - Molex - 3D model - Other - 21322724YY
click to zoom

2132272410 Details

  • Manufacturer Part Number:

    2132272410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.36 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    0.878 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.059 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    9.4 mm

  • Plating Thickness:

    4u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

2132272410 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the Molex 2132272410 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The Molex 2132272410 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to consider additional protection measures, such as conformal coating or sealing, to ensure reliability.
  • The Molex 2132272410 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's crucial to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and meet the required performance and safety standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2132272410 Overview

Use the download button to access the 2132272410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21322, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
