2132282031 - Molex

Description: 1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Dual Row, Surface Mount, Right-Angle, 0.38µm Gold (Au) Plating, 20 Circuits, Black

Download 2132282031 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

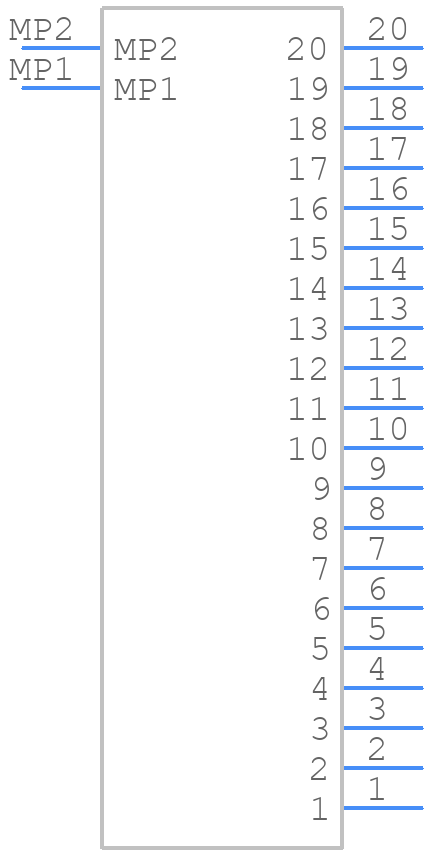

2132282031 - Molex - PCB symbol
click to zoom
PCB Footprints
2132282031 - Molex PCB footprint - Other - Other - 2132282010-2
click to zoom
3D Models
2132282031 - Molex - 3D model - Other - 2132282010-2
click to zoom

2132282031 Details

  • Manufacturer Part Number:

    2132282031

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.376 inch

  • Body Length:

    0.76 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.059 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    DETENT

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.75 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

2132282031 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 2132282031 connector is 50 cycles, as specified in the Molex's general specification for connectors.
  • While the datasheet doesn't explicitly mention vibration resistance, Molex's connectors are generally designed to meet the IEC 61984 standard for vibration resistance. However, it's recommended to consult with Molex's application engineers to ensure the connector meets the specific vibration requirements of your application.
  • The datasheet specifies an operating temperature range of -40°C to 105°C. However, it's essential to consider the specific temperature requirements of your application and consult with Molex's application engineers to ensure the connector meets those requirements.
  • The recommended torque for the 2132282031 connector is typically specified in the Molex's general specification document or can be obtained by consulting with their application engineers.
  • The 2132282031 mention automation compatibility, but Molex's connectors are generally designed to be compatible with automated assembly processes. It's best to consult with their application engineers to ensure the connector meets the requirements of your specific automation process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2132282031 Overview

Use the download button to access the 2132282031 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21322, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
