213289-2 - TE Connectivity

Description: Configuration Features: Number of Power Positions 34 | PCB Mount Orientation Right Angle | Number of Rows 4 | Number of Positions 34 | Number of Signal Positions 34 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Type Pin | Contact Retention Within Housing With | Contact Mating Area Plating Material Gold | Contact Current Rating (Max) 13 AMP | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Thickness .3 MICIN | Dimensions: Row-to

Download 213289-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

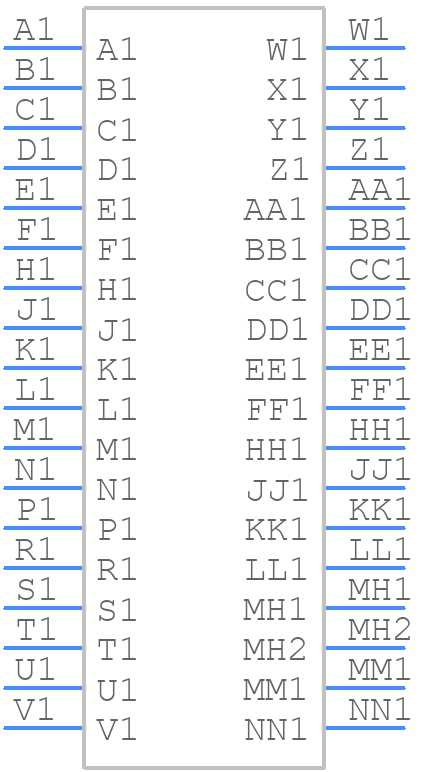

213289-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

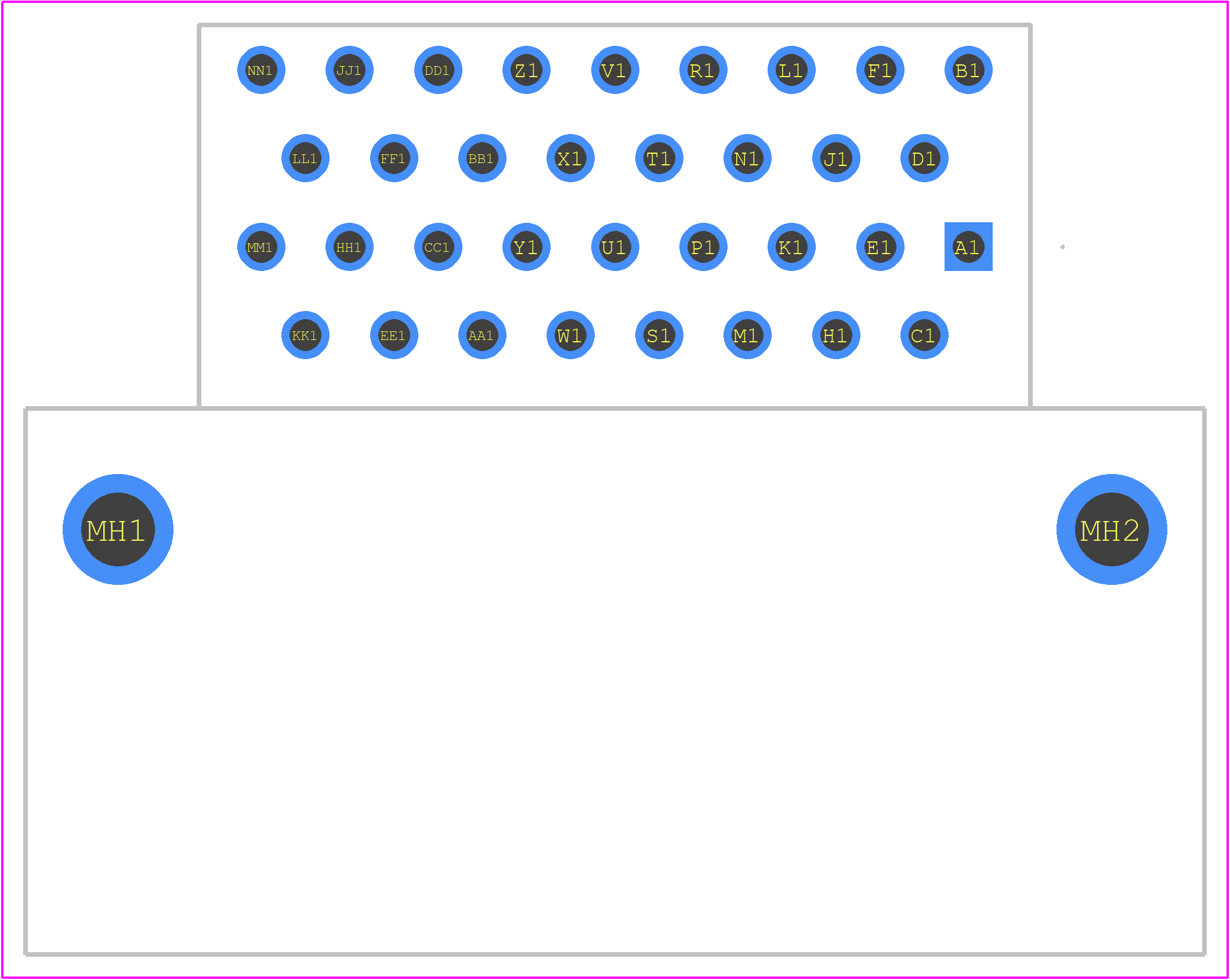

213289-2 - TE Connectivity PCB footprint - Other - Other - 213289-2-2
click to zoom
3D Models
213289-2 - TE Connectivity - 3D model - Other - 213289-2-2
click to zoom

213289-2 Details

  • Manufacturer Part Number:

    213289-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    48 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.915 inch

  • Body Depth:

    0.75 inch

  • Body Length:

    2 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED PHENOLIC

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    13A

  • Mating Contact Row Spacing:

    0.18 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    JACKSCREW

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    .3u inch

  • Rated Current (Signal):

    13 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    3.81 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

213289-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 213289-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 26 AWG. However, it's crucial to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
  • The 213289-2 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 105°C. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in humid or high-temperature conditions.
  • Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. This includes maintaining a minimum clearance of 1.5 mm between the connector and nearby components, and ensuring the PCB material can withstand the connector's operating temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

213289-2 Overview

Use the download button to access the 213289-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21328, or try a keyword search, such as Telecom and Datacom Connectors
