213598-1 - TE Connectivity

Description: Configuration Features: Number of Positions 3 | Contact Features: Contact Current Rating (Max) 15 AMP | Contact Base Material Brass | Dimensions: Product Depth 32.54 MM | Product Depth 1.28 INCH | Product Width 1.23 INCH | Product Width 31.12 MM | Product Height 1.23 INCH | Product Height 31.12 MM | Housing Features: Housing Material Glass-Filled Nylon | Centerline (Pitch) .5 INCH | Housing Color Gray | Centerline (Pitch) 12.7 MM | Mechanical Attachment: Connector Mounting Type Panel Mount | Operation/Appli

Download 213598-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
213598-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

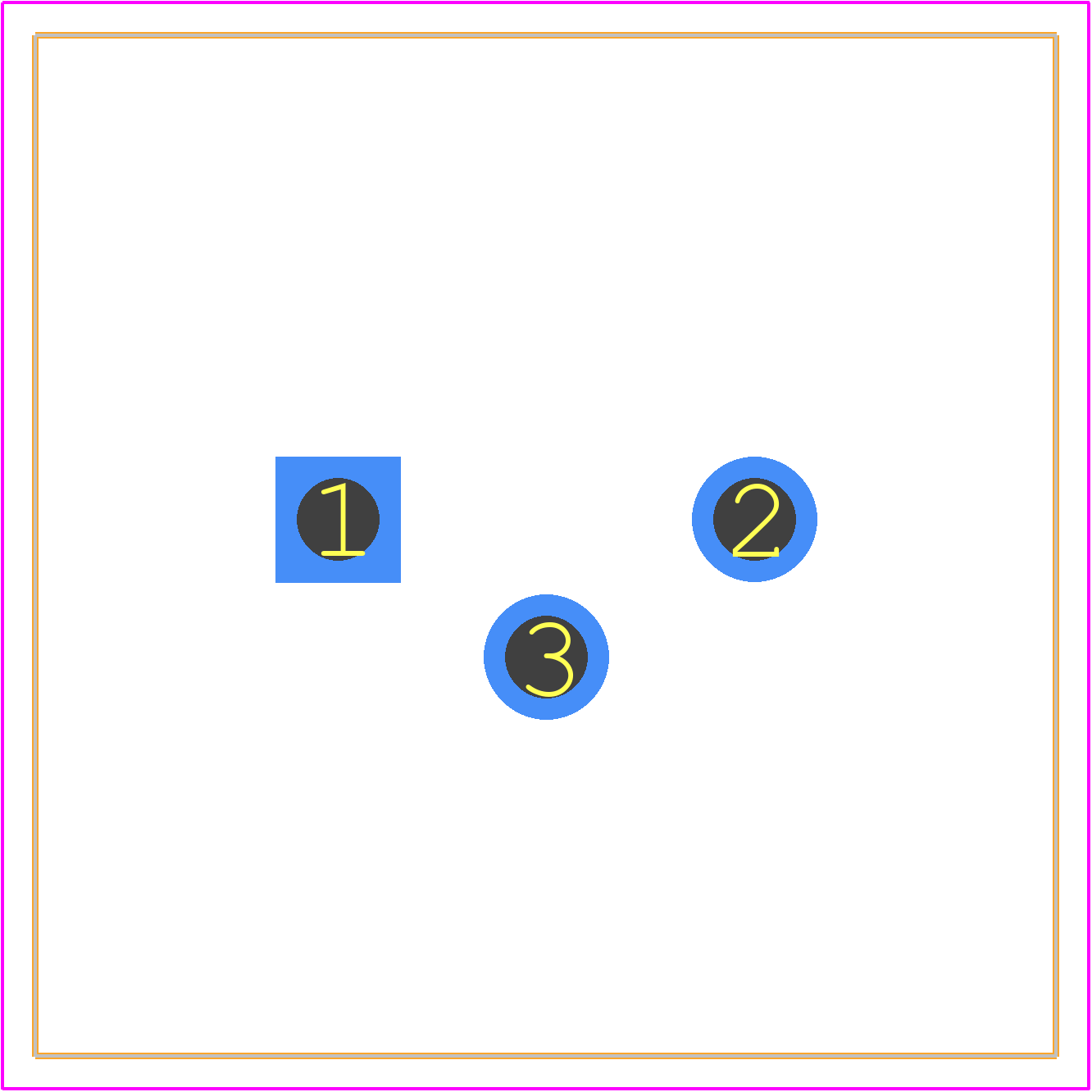

213598-1 - TE Connectivity PCB footprint - Other - Other - 213598-1-1
click to zoom
3D Models
213598-1 - TE Connectivity - 3D model - Other - 213598-1-1
click to zoom

213598-1 Details

  • Manufacturer Part Number:

    213598-1

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Body Breadth:

    1.23 inch

  • Body Depth:

    1.28 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    15 A

  • Terminal Pitch:

    12.7 mm

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

213598-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the most up-to-date information.
  • Yes, the 213598-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
  • The 213598-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, extreme temperatures, or corrosive environments. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
  • The 213598-1 connector is designed for use with 24-20 AWG wire. While it may be possible to use it with a different wire gauge or type, it's essential to ensure compatibility and consult TE Connectivity's guidelines to avoid any potential issues or damage.
  • The 213598-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential thermal stresses to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

213598-1 Overview

Use the download button to access the 213598-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21359, or try a keyword search, such as Mains Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
