213788-3 - TE Connectivity

Description: Headers & Wire Housings 62P ACTION PIN ASY MMATE LF

Download 213788-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
213788-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

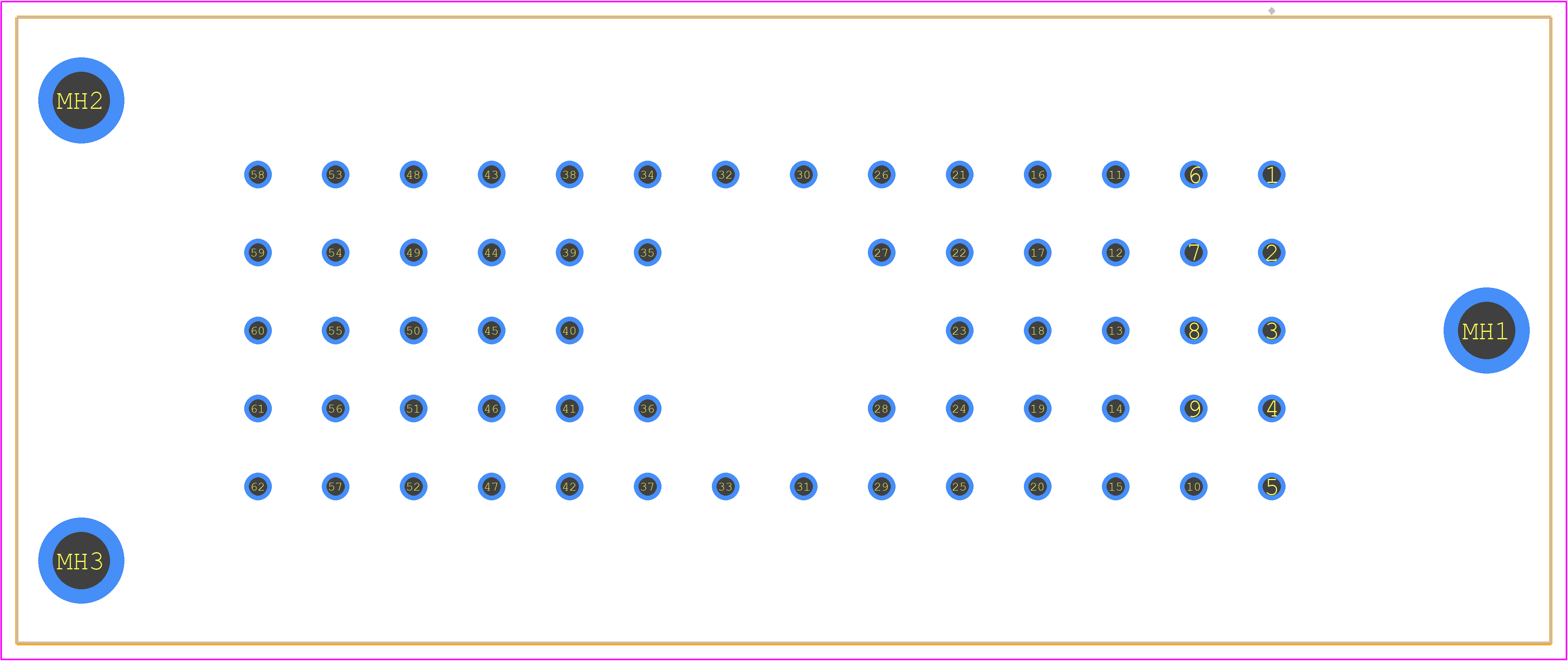

213788-3 - TE Connectivity PCB footprint - Other - Other - 213788-3-2
click to zoom
3D Models
213788-3 - TE Connectivity - 3D model - Other - 213788-3-2
click to zoom

213788-3 Details

  • Manufacturer Part Number:

    213788-3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.7

  • Body Breadth:

    1.549 inch

  • Body Depth:

    1.582 inch

  • Body Length:

    3.87 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mating Contact Row Spacing:

    0.197 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    5 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    62

  • UL Flammability Code:

    94V-0

213788-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 213788-3 connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 213788-3 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
  • Yes, it's recommended to clean the connector contacts with a soft brush and a mild detergent solution to prevent corrosion and ensure reliable connections. Avoid using harsh chemicals or abrasive materials that can damage the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

213788-3 Overview

Use the download button to access the 213788-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21378, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
