214-3339-09-0602J - 3M

Description: IC & Component Sockets RECPT FOR DIP SOCKET 14 Contact Qty.

Download 214-3339-09-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
214-3339-09-0602J - 3M - PCB symbol
click to zoom

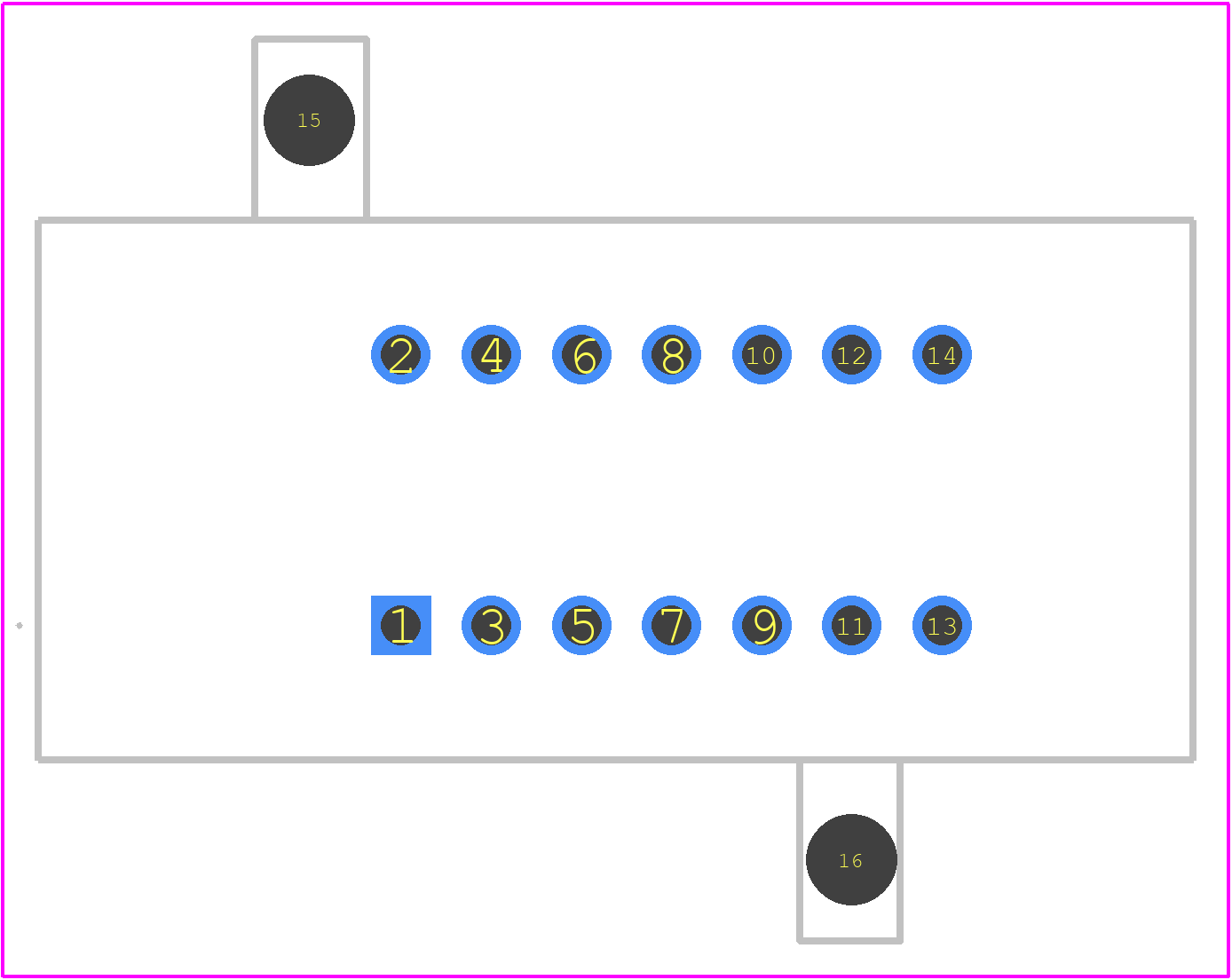

PCB Footprints
214-3339-09-0602J - 3M PCB footprint - Other - Other - 214-3339-09-0602J-2
click to zoom

214-3339-09-0602J Details

  • Manufacturer Part Number:

    214-3339-09-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    14

214-3339-09-0602J Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 214-3339-09-0602J connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
  • The operating temperature range of the 214-3339-09-0602J connector is -55°C to 125°C (-65°F to 257°F).
  • Yes, the connector is designed to be resistant to moisture and chemicals, with a sealing rating of IP67 (dust-tight and protected against immersion in water up to 1 meter for 30 minutes).
  • The mating cycle life of the 214-3339-09-0602J connector is 500 cycles minimum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

214-3339-09-0602J Overview

Use the download button to access the 214-3339-09-0602J schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 214-3, or try a keyword search, such as Sockets and Chip Carriers
