214-99-320-01-670800 - Mill-Max

Description: 20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin-Lead Surface Mount

Download 214-99-320-01-670800 Model

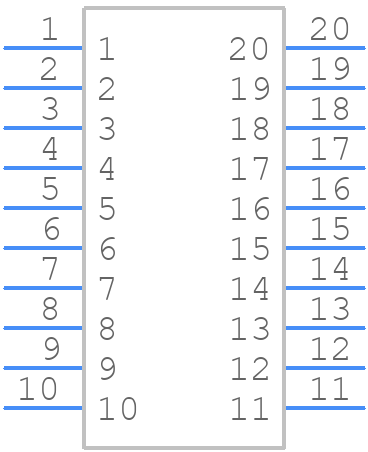

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

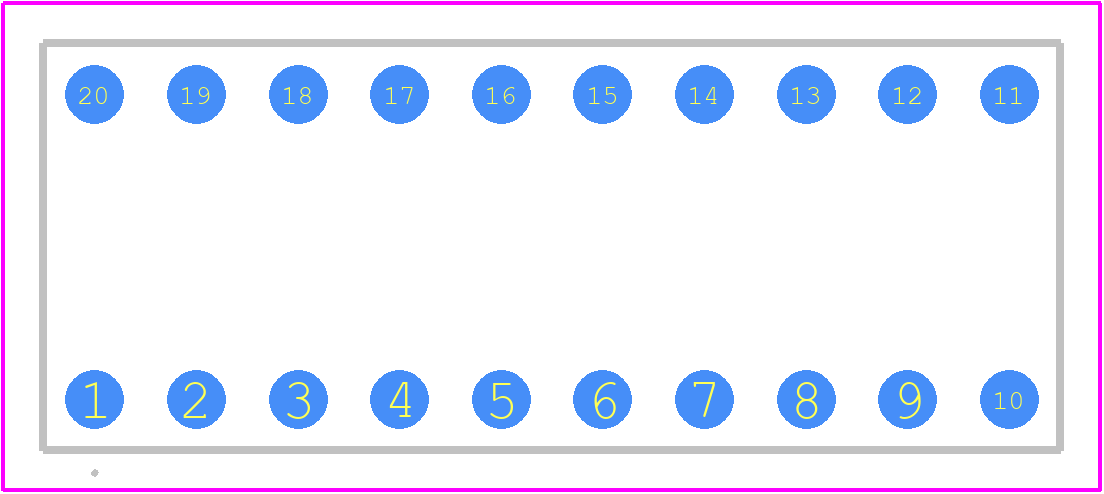

PCB Footprints
214-99-320-01-670800 - Mill-Max PCB footprint - Other - Other - 214-99-320-01-670800-2
click to zoom
3D Models
214-99-320-01-670800 - Mill-Max  - 3D model - Other - 214-99-320-01-670800-2
click to zoom

214-99-320-01-670800 Details

  • Manufacturer Part Number:

    214-99-320-01-670800

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    5

  • Additional Feature:

    DIP SOCKET

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    POLYAMIDE46

  • JESD-609 Code:

    e0

  • Number of Contacts:

    20

214-99-320-01-670800 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
  • Yes, the 214-99-320-01-670800 connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque to prevent connector damage.
  • The 214-99-320-01-670800 connector is rated for operating temperatures between -55°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult the manufacturer's environmental testing data and to consider additional protection measures, such as conformal coating or sealing, for extreme environmental conditions.
  • The 214-99-320-01-670800 connector is rated for a minimum of 500 mating cycles, but this can vary depending on the application, usage, and environmental conditions. It's recommended to consult the manufacturer's testing data and to perform your own testing to determine the connector's reliability in your specific application.
  • While the 214-99-320-01-670800 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, this may affect the connector's performance, reliability, and durability. It's recommended to consult the manufacturer's guidelines and to perform testing to ensure the connector's compatibility with your specific wire size and application.
