21420000006 - HARTING

Description: M8 D-code 4pin female straight pcb mount (waveflow), w/o housing, shielded, IP67

Download 21420000006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

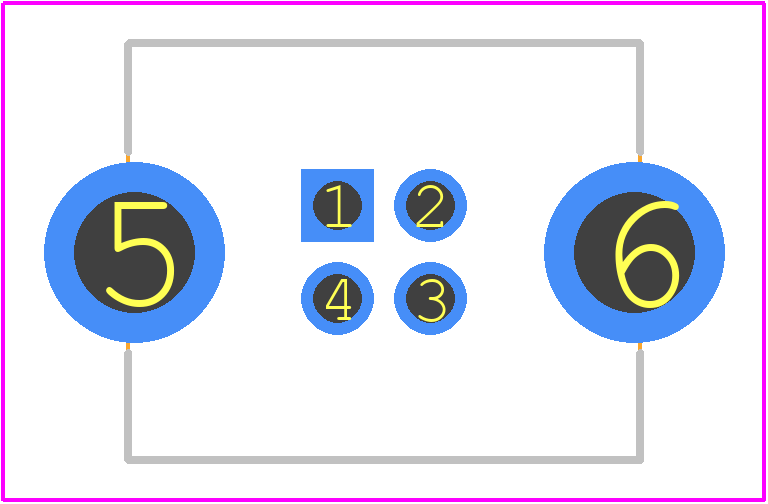

21420000006 - HARTING PCB footprint - Other - Other - 21420100003401
click to zoom
3D Models
21420000006 - HARTING  - 3D model - Other - 21420100003401
click to zoom

21420000006 Details

  • Manufacturer Part Number:

    21420000006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4
