21420000014 - HARTING

Description: M8 D-code 4pin female straight pcb mount (waveflow), w/ housing, front mount, shielded, IP67, (8mm height)

Download 21420000014 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21420000014 - HARTING - PCB symbol
click to zoom
PCB Footprints

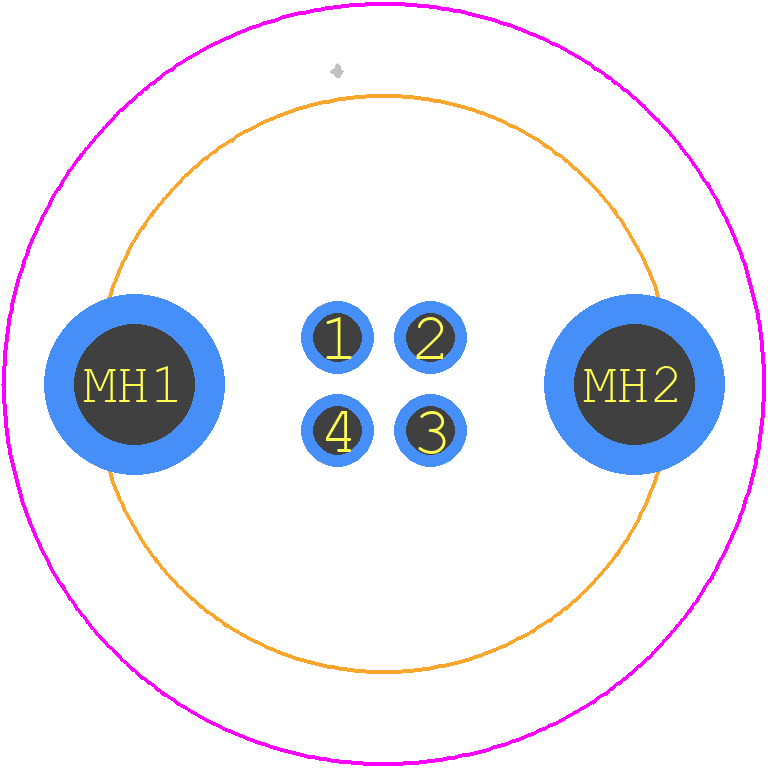

21420000014 - HARTING PCB footprint - Other - Other - 21420000014-1
click to zoom
3D Models
21420000014 - HARTING - 3D model - Other - 21420000014-1
click to zoom

21420000014 Details

  • Manufacturer Part Number:

    21420000014

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

21420000014 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 21420000014 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 21420000014 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the 21420000014 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 21420000014 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 21420000014 connector is designed to be compatible with other HARTING products and components. However, compatibility with third-party components should be verified through testing and consultation with HARTING's documentation and technical support.
