21420000020 - HARTING

Description: M8 D-code 4pin female angled pcb mount (waveflow), w/ housing, rear mount, shielded, IP67 (longer footprint)

Download 21420000020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21420000020 - HARTING - PCB symbol
click to zoom
PCB Footprints

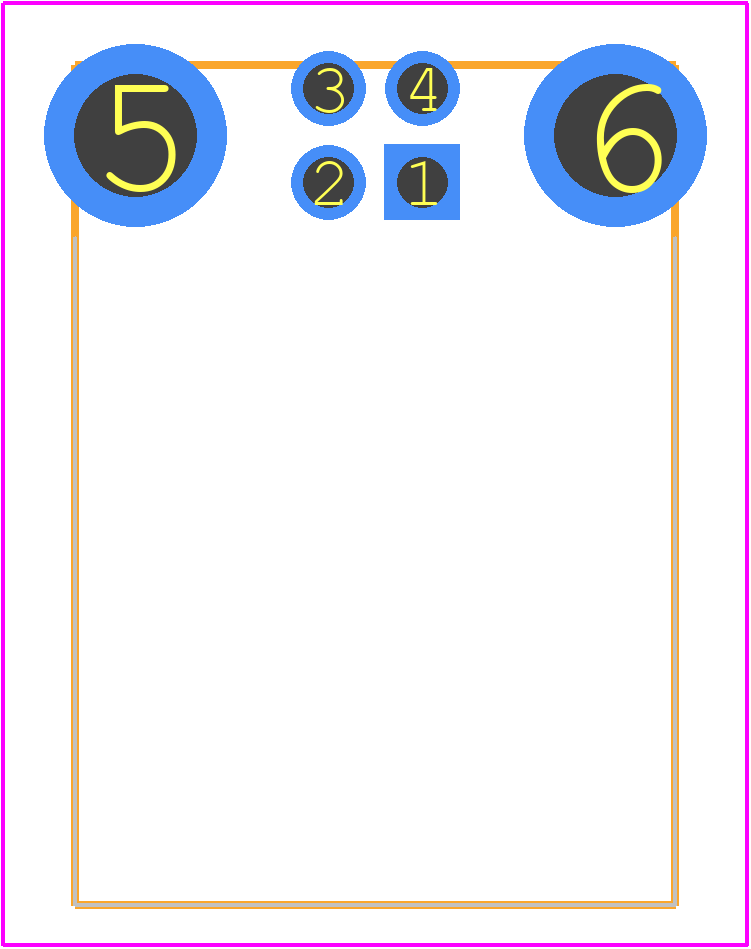

21420000020 - HARTING PCB footprint - Other - Other - 21420000020-4
click to zoom
3D Models
21420000020 - HARTING - 3D model - Other - 21420000020-4
click to zoom

21420000020 Details

  • Manufacturer Part Number:

    21420000020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21420000020 Overview

Use the download button to access the 21420000020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21420, or try a keyword search, such as Other Circular Connectors
