21420100003401 - HARTING

Description: M8 D-code 4pin female angled pcb mount (waveflow), w/o housing, shielded, IP67

Download 21420100003401 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
21420100003401 - HARTING - PCB symbol
click to zoom
PCB Footprints

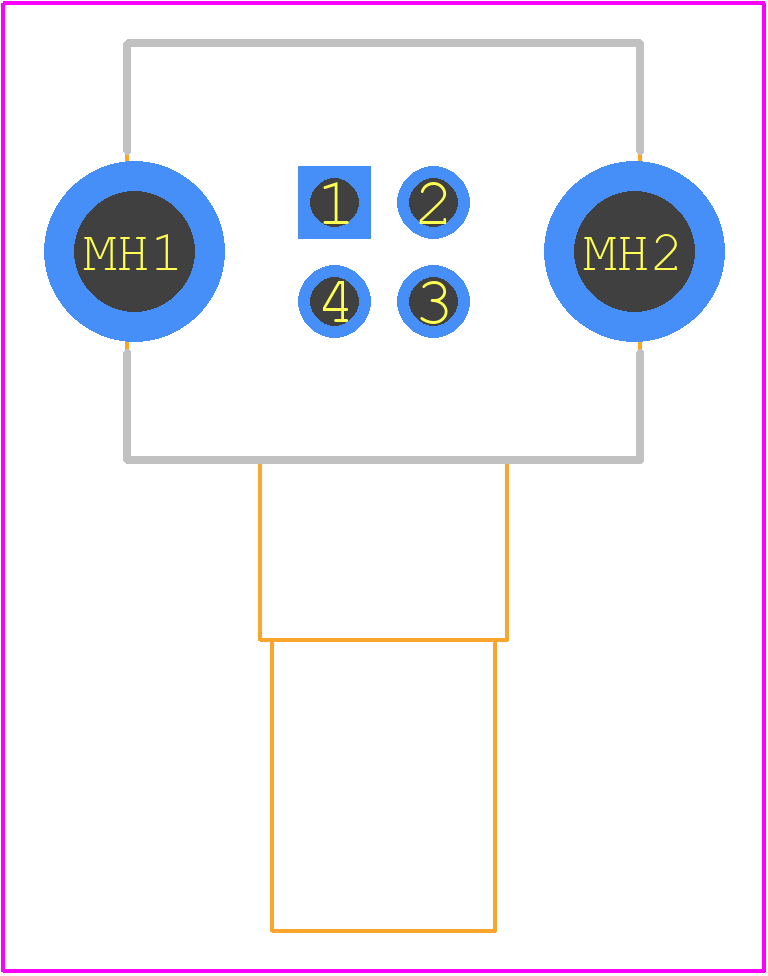

21420100003401 - HARTING PCB footprint - Other - Other - 21420100003401-1
click to zoom
3D Models
21420100003401 - HARTING - 3D model - Other - 21420100003401-1
click to zoom

21420100003401 Details

  • Manufacturer Part Number:

    21420100003401

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

21420100003401 Overview

Use the download button to access the 21420100003401 schematic symbol, PCB footprint, and 3D model.
