2143-2X10G00DPU - OUPIN

Description: 20 Position Socket Connector 0.079" (2.00mm) Surface Mount Gold , 1A , 500VAC , 100mA , -65°C ~ 125°C

Download 2143-2X10G00DPU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2143-2X10G00DPU - OUPIN - PCB symbol
click to zoom
PCB Footprints

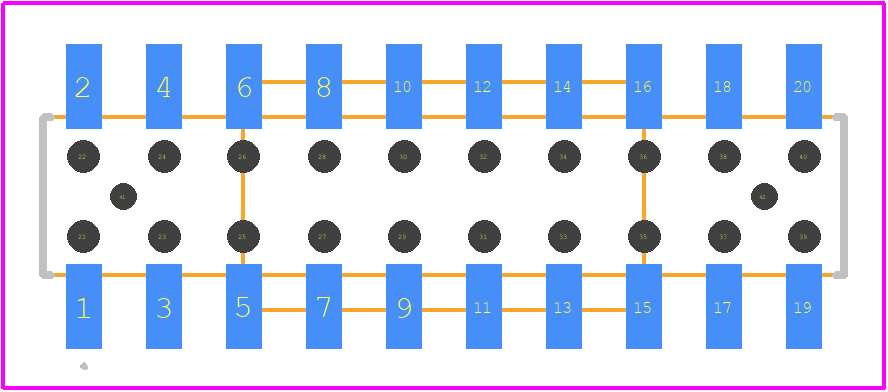

2143-2X10G00DPU - OUPIN PCB footprint - Other - Other - 2143-2X10G00DPU-1
click to zoom

2143-2X10G00DPU Details

  • Manufacturer Part Number:

    2143-2X10G00DPU

  • Manufacturer:

    Oupiin

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2143-2X10G00DPU Overview

Use the download button to access the 2143-2X10G00DPU schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 2143-, or try a keyword search, such as Headers and Edge Type Connectors
