Part Image

214550-E - TE Connectivity

Description: Configuration Features: Insertion Force 5 NEWT | Number of Power Positions 5 | Board-to-Board Configuration Parallel | Number of Signal Positions 0 | PCB Mount Orientation Vertical | Number of Positions 5 | Number of Rows 1 | Number of Columns 5 | Contact Features: Contact Mating Area Plating Material Gold (Au) | Contact Type Tab | PCB Contact Termination Area Plating Material Thickness 157.48 – 236.22 MICIN | PCB Contact Termination Area Plating Material Thickness 4 – 6 MICM | Contact Layout Inline | P

Download 214550-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

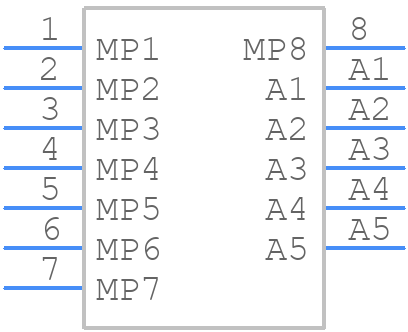

Symbol
214550-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
214550-E - TE Connectivity PCB footprint - Other - Other - 214550-E-2
click to zoom
3D Models
214550-E - TE Connectivity - 3D model - Other - 214550-E-2
click to zoom

214550-E Details

  • Manufacturer Part Number:

    214550-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.27

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.23 inch

  • Body Depth:

    0.305 inch

  • Body Length:

    0.478 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    18A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    18 A

  • Reference Standard:

    CSA, UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

214550-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 214550-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 214550-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the 214550-E connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 214550-E connector has a IP67 rating, which means it is protected against dust and water ingress. Additionally, it is made with materials that can withstand exposure to certain chemicals. However, it's crucial to consult the datasheet and TE Connectivity's guidelines for specific environmental requirements and compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

214550-E Overview

Use the download button to access the 214550-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21455, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
