214802-E Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 214802-E connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is the connector compatible with wire sizes other than AWG 20-24?
  While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its design specifications and to avoid any potential reliability issues.
• Can I use this connector in harsh environments, such as high-temperature or humid conditions?
  The 214802-E connector is designed to operate in a temperature range of -40°C to 105°C and can withstand humidity up to 95%. However, it's essential to consider the specific environmental conditions of your application and consult with TE Connectivity or a qualified engineer to ensure the connector meets the required specifications.

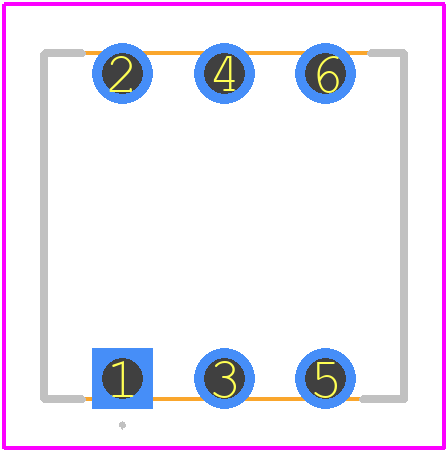

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow the recommended PCB layout guidelines provided by TE Connectivity to ensure proper connector operation and prevent damage. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, as well as following the recommended pad layout and soldering guidelines.
