214916-E - TE Connectivity

Description: 5 Position Connector Array, Male Pins Surface Mount, Through Hole Gold

Download 214916-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

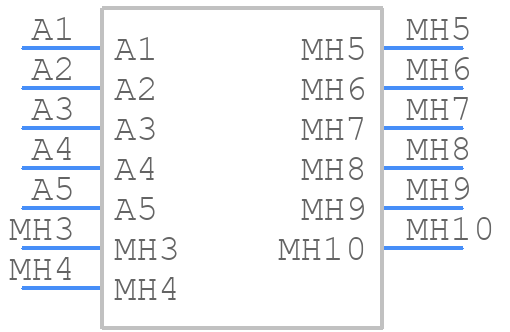

214916-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
214916-E - TE Connectivity PCB footprint - Other - Other - 214916-E-1
click to zoom
3D Models
214916-E - TE Connectivity - 3D model - Other - 214916-E-1
click to zoom

214916-E Details

  • Manufacturer Part Number:

    214916-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.87

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.23 inch

  • Body Length:

    0.478 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    18A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    18 A

  • Reference Standard:

    CSA, UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

214916-E Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 214916-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
  • Yes, the 214916-E connector is designed for outdoor use and can withstand exposure to moisture and humidity. It has a IP67 rating, which means it can withstand immersion in water up to 1 meter for 30 minutes.
  • The operating temperature range of the 214916-E connector is -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from cold storage to high-temperature industrial environments.
  • While the 214916-E connector is designed for use with 16 AWG wire, it can accommodate wire sizes from 14 AWG to 18 AWG. However, it's essential to follow the manufacturer's guidelines and ensure the wire size is compatible with the connector's specifications.
