2149375-1 - TE Connectivity

Description: Configuration Features: Number of Positions 144 | Port Matrix Configuration 1 x 4 | Number of Ports 4 | Contact Features: Contact Base Material Copper Alloy | Dimensions: Profile Height from PCB 12.78 MM | Profile Height from PCB .503 INCH | PCB Thickness (Recommended) .97 MM | PCB Thickness (Recommended) .038 INCH | Electrical Characteristics: Data Rate (Max) 12 GBS | Housing Features: Centerline (Pitch) .03 MM | Centerline (Pitch) .75 INCH | Housing Material LCP (Liquid Crystal Polymer) | Industry Standar

Download 2149375-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2149375-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

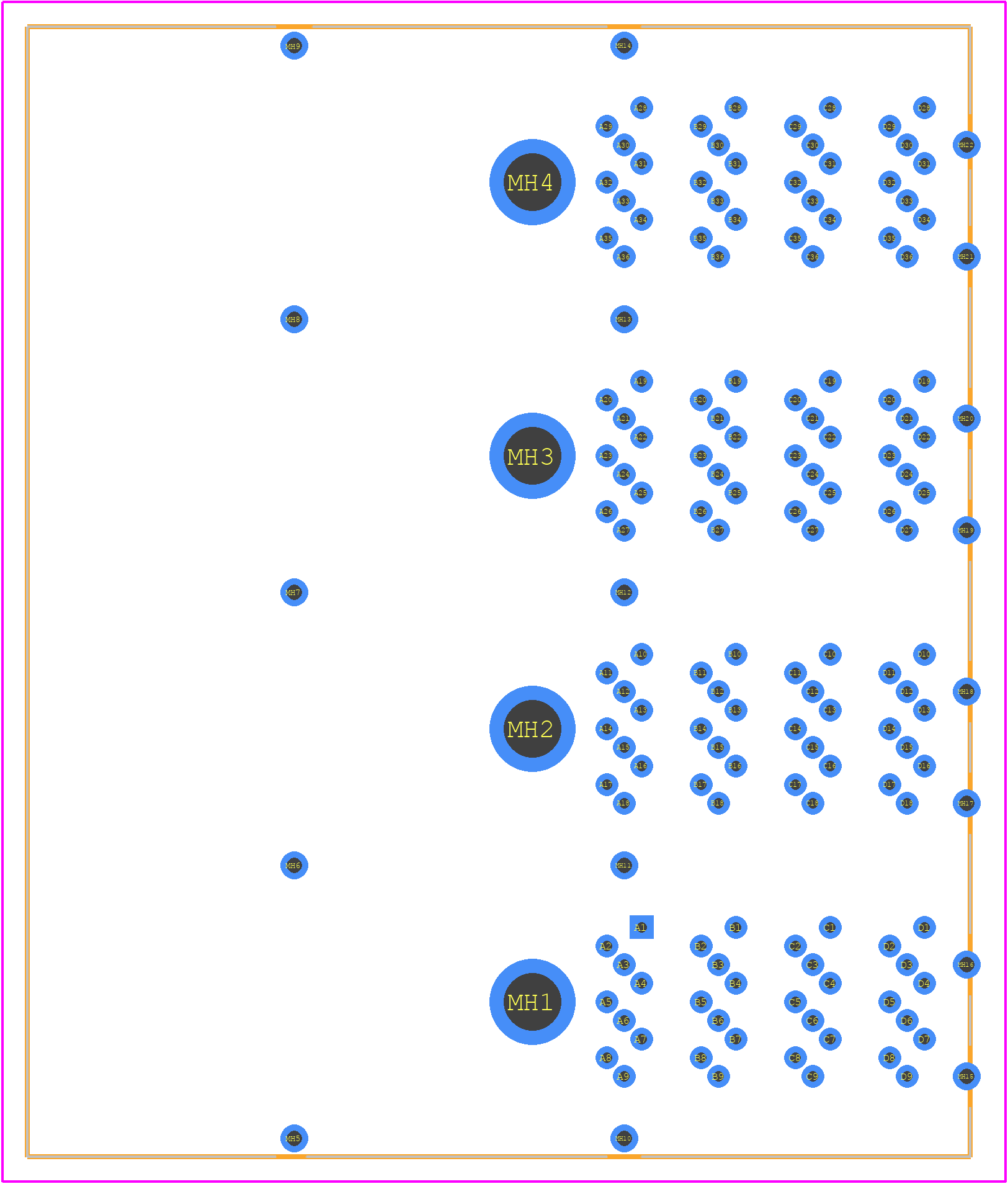

2149375-1 - TE Connectivity PCB footprint - Other - Other - 2149375-1-1
click to zoom
3D Models
2149375-1 - TE Connectivity - 3D model - Other - 2149375-1-1
click to zoom

2149375-1 Details

  • Manufacturer Part Number:

    2149375-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    M2 THREADED HOLES

  • Body Depth:

    0.503 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SAS CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.065 inch

  • Terminal Pitch:

    0.03 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    144

  • UL Flammability Code:

    94V-0

2149375-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 2149375-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2149375-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2149375-1 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 2149375-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2149375-1 Overview

Use the download button to access the 2149375-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21493, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
