2149730-1 - TE Connectivity

Description: Body Features: Heat Sink Style Pin | Heat Sink Height Class Networking Short | Heat Sink Height 9.1 MM | Heat Sink Height .358 INCH | Configuration Features: Number of Ports 4 | Port Matrix Configuration 1 x 4 | Dimensions: PCB Thickness (Recommended) 2.25 MM | PCB Thickness (Recommended) .089 INCH | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Pluggable I/O Applications SFP+ | Heat Sink Compatible Yes | Circuit Application Signa

Download 2149730-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2149730-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

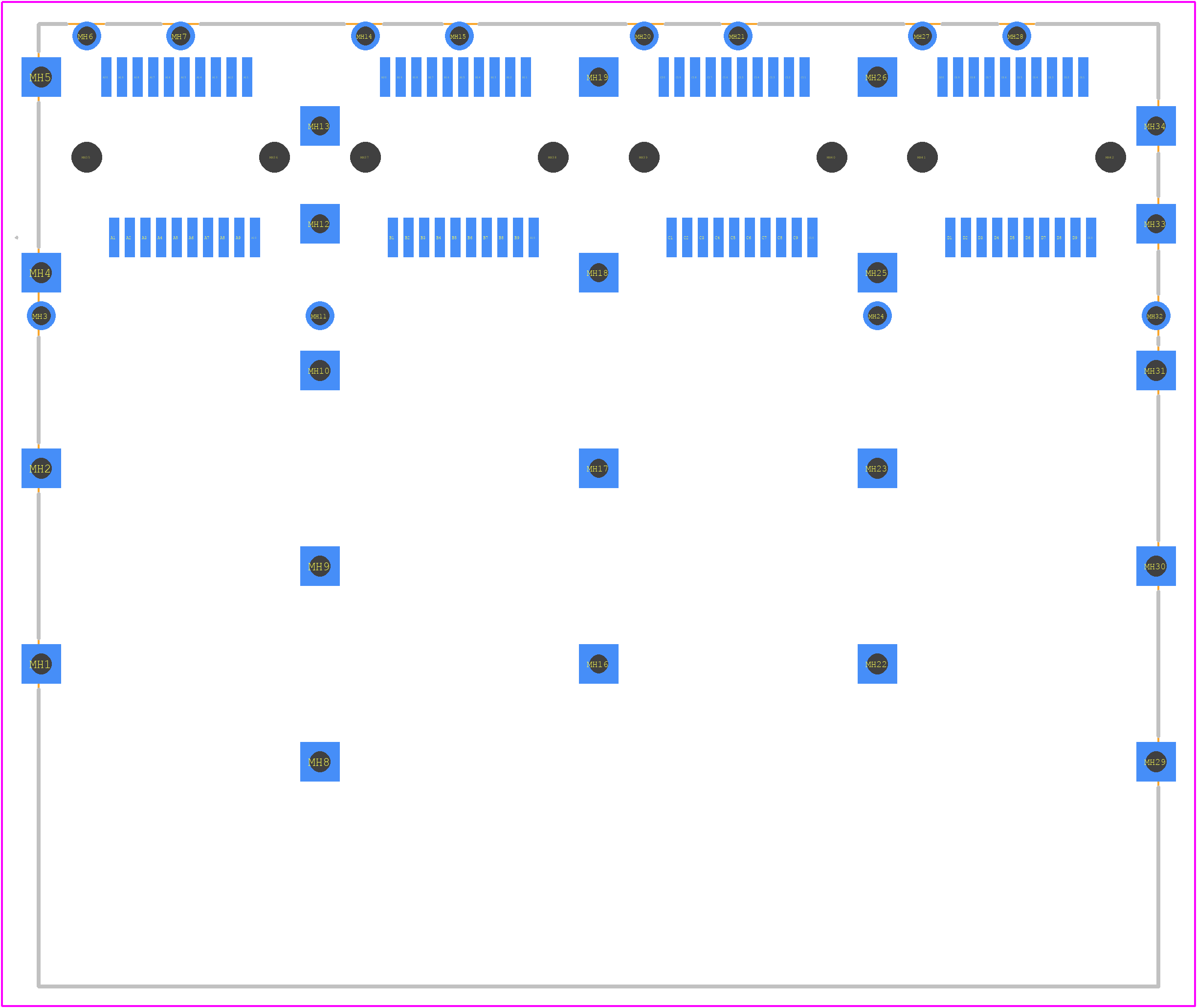

2149730-1 - TE Connectivity PCB footprint - Other - Other - 2149730-1-1
click to zoom
3D Models
2149730-1 - TE Connectivity - 3D model - Other - 2149730-1-1
click to zoom

2149730-1 Details

  • Manufacturer Part Number:

    2149730-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • Design Use:

    SIGNAL

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG
