216-3340-00-0602J - Textool

Description: 16 (2 x 8) Pos DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing Socket Gold Connector

Download 216-3340-00-0602J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
216-3340-00-0602J - Textool - PCB symbol
click to zoom
PCB Footprints

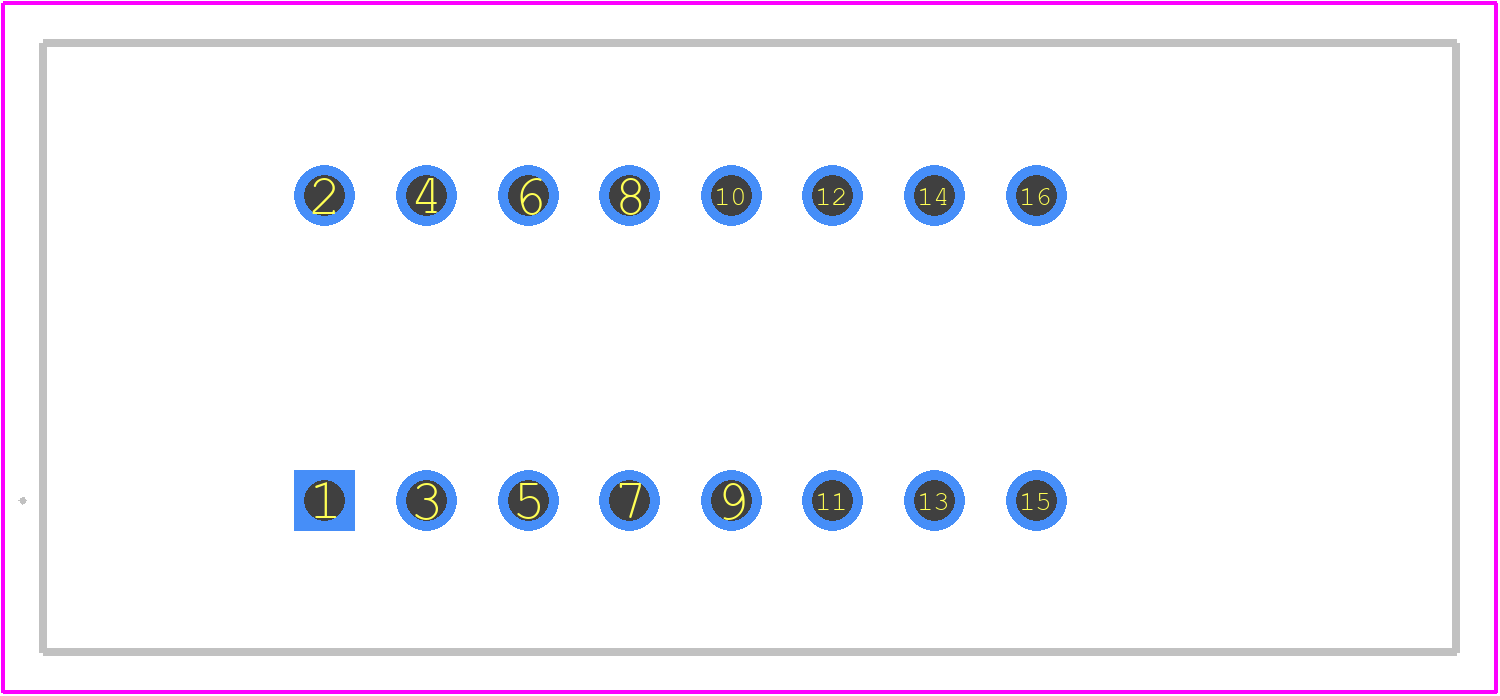

216-3340-00-0602J - Textool PCB footprint - Other - Other - 216-3340-00-0602J-3
click to zoom
3D Models
216-3340-00-0602J - Textool - 3D model - Other - 216-3340-00-0602J-3
click to zoom

216-3340-00-0602J Details

  • Manufacturer Part Number:

    216-3340-00-0602J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP16

  • Housing Material:

    GLASS FILLED POLYSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    16
