216-3340-19-0602J footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

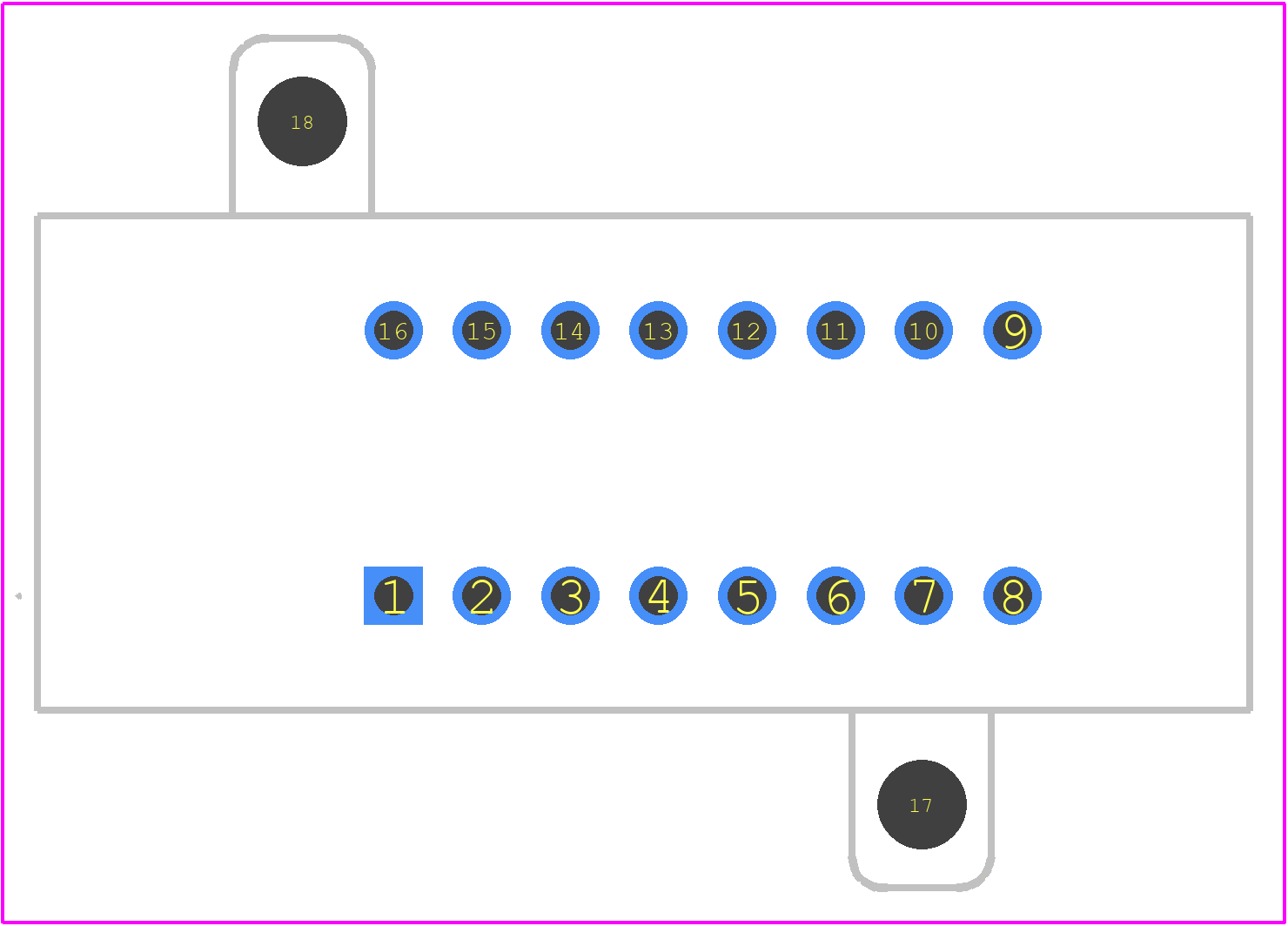

216-3340-19-0602J - 3M PCB footprint - Other - Other - 216-3340-19-0602J-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 216-3340-19-0602J
Part Number 216-3340-19-0602J
Manufacturer 3M
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - 216-3340-19-0602J-3
Released Date Jun 20, 2024
Last Modified Date Jun 25, 2024 8:10 AM UTC
Pinout / Pin List Click Here (Member Only)

216-3340-19-0602J Details

Manufacturer Part Number:
216-3340-19-0602J
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
13 Weeks
Manufacturer:
3M Interconnect
YTEOL:
7.3
Additional Feature:
STANDARD: UL 94V-0
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
GOLD (30) OVER NICKEL (50)
Contact Material:
BERYLLIUM COPPER
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP16
Housing Material:
GLASS FILLED POLYSULFONE
JESD-609 Code:
e4
Number of Contacts:
16

216-3340-19-0602J Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 216-3340-19-0602J connector is designed to withstand vibrations up to 10 G (rms) in the frequency range of 10-2000 Hz.
Yes, the connector is rated for outdoor use and can operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to ensure proper sealing and protection from moisture and environmental factors.
The maximum wire size that can be used with the 216-3340-19-0602J connector is 16 AWG (1.31 mm²).
Yes, the connector is rated for high-temperature applications up to 125°C (257°F). However, it's essential to ensure that the connector is properly installed and that the temperature rating of the wire and other components is not exceeded.

Trust Checks

Community Provided

System Verified

Community Approved

216-3340-19-0602J Overview

Use the download button to access the 216-3340-19-0602J schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 216-3, or try a keyword search, such as Sockets and Chip Carriers
