The recommended PCB layout for the 2162Q16-UR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground layer is also recommended.
To ensure proper biasing, the 2162Q16-UR requires a dual supply voltage (±15V) and a bias voltage (VCC) of 5V to 12V. The bias voltage should be decoupled with a 10uF capacitor to ground, and the device should be operated within the recommended temperature range of -40°C to +85°C.
The maximum input signal amplitude that can be applied to the 2162Q16-UR is ±10V peak-to-peak. Exceeding this limit may result in distortion, clipping, or damage to the device.
The 2162Q16-UR can be configured for differential or single-ended operation by connecting the input pins accordingly. For differential operation, connect the input signals to pins 1 and 2 (IN+ and IN-), and for single-ended operation, connect the input signal to pin 1 (IN+) and tie pin 2 (IN-) to ground.
The typical output impedance of the 2162Q16-UR is 100 ohms. This should be taken into account when designing the output stage and selecting the load impedance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2162Q16-UR Overview

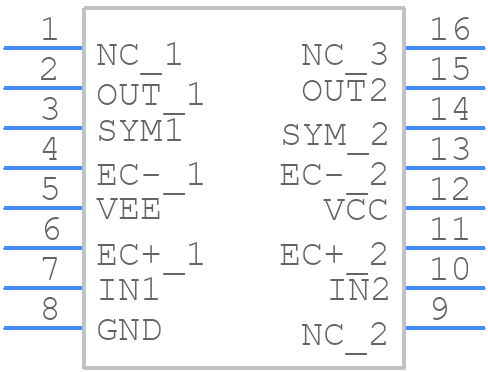

Use the download button to access the 2162Q16-UR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2162Q,
or try a keyword search, such as Other Amplifiers
