216548-1 - TE Connectivity

216548-1 Details

• Manufacturer Part Number:

  216548-1

• Brand Name:

  AMP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  5 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.1

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.5 inch

• Body Depth:

  0.646 inch

• Body Length:

  0.63 inch

• Body/Shell Style:

  JACK

• Connector Type:

  RJ CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Resistance:

  30 mΩ

• Contact Style:

  TELCOM, MODULAR

• DIN Conformance:

  NO

• Durability:

  750 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.5A

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Ports:

  1

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

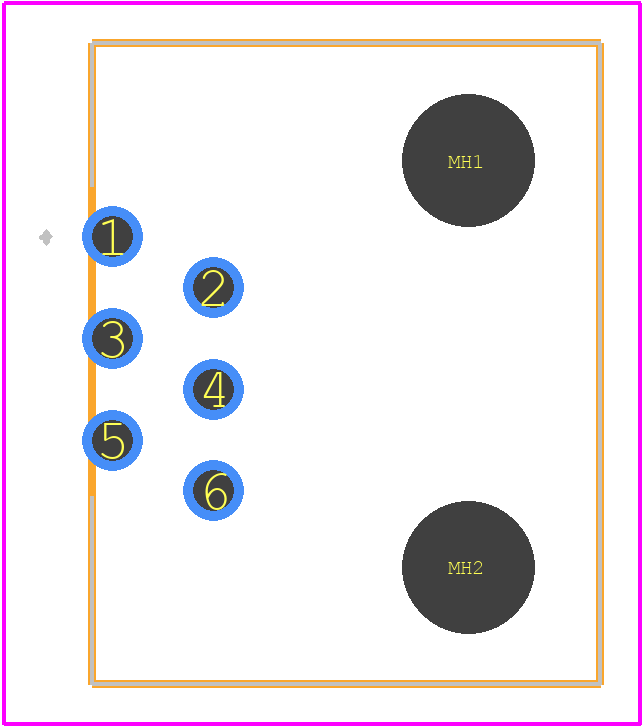

• PCB Contact Pattern:

  STAGGERED

• Panel Mount:

  NO

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.122 inch

• Terminal Pitch:

  1.02 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  6

• UL Flammability Code:

  94-HB
