2166570109 - Molex

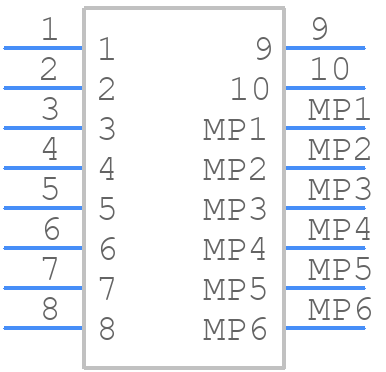

2166570109 Details

• Manufacturer Part Number:

  2166570109

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  Molex

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.071 inch

• Body Depth:

  0.023 inch

• Body Length:

  0.157 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Arrangement:

  S6P4

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  10 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  40 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.016 inch

• Mating Information:

  2166560109

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.79 mm

• Plating Thickness:

  4u inch

• Rated Current (Power):

  15 A

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.4 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  10

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  10 N
