2167010409 - Molex

Description: SlimStack Board-to-Board Plug, 0.35mm Pitch, ACB6+ Series, 0.60mm Mated Height, 1.90mm Mated Width, 40 Circuits

Download 2167010409 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

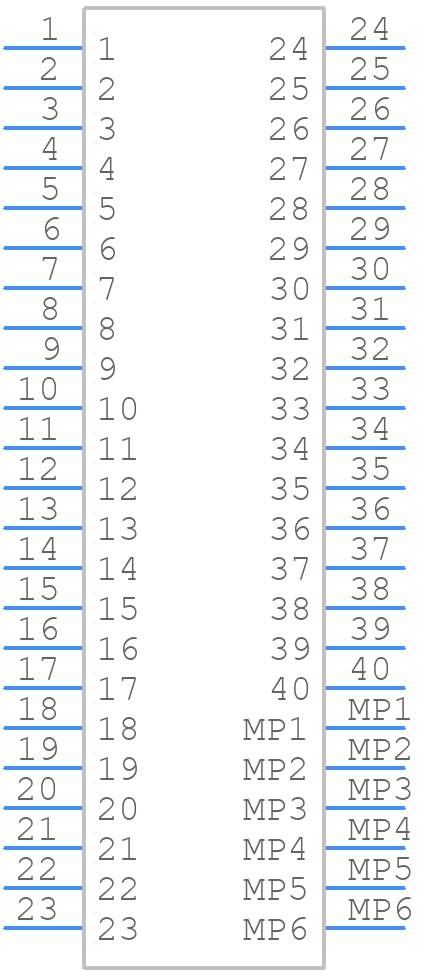

Symbol
2167010409 - Molex - PCB symbol
click to zoom
PCB Footprints
2167010409 - Molex PCB footprint - Other - Other - 2167010409-2
click to zoom
3D Models
2167010409 - Molex - 3D model - Other - 2167010409-2
click to zoom

2167010409 Details

  • Manufacturer Part Number:

    2167010409

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Body Breadth:

    0.041 inch

  • Body Depth:

    0.019 inch

  • Body Length:

    0.341 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    COMPRESSION

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.014 inch

  • Mating Information:

    2167000509

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.48 mm

  • Plating Thickness:

    4u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.35 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

2167010409 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the Molex 2167010409 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The Molex 2167010409 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The Molex 2167010409 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with proper wire stripping and termination. However, it's crucial to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2167010409 Overview

Use the download button to access the 2167010409 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21670, or try a keyword search, such as Headers and Edge Type Connectors
