2169809-1 - TE Connectivity

Description: Configuration Features: Number of Columns 2 | Number of Positions 4 | PCB Mount Orientation Vertical | Backplane Architecture Orthogonal | Stackable No | Contact Features: Contact Current Rating (Max) 20 AMP | Dimensions: PCB Thickness (Recommended) 1.6 MM | PCB Hole Diameter .029 INCH | PCB Hole Diameter .73 MM | PCB Thickness (Recommended) .062 INCH | Electrical Characteristics: Operating Voltage 48 VDC | Housing Features: Housing Material LCP (Liquid Crystal Polymer) | Centerline (Pitch) .205 INCH | Hous

Download 2169809-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

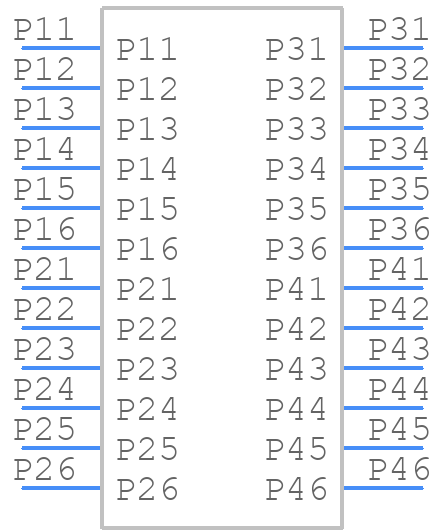

Symbol
2169809-1 - TE Connectivity - PCB symbol
click to zoom

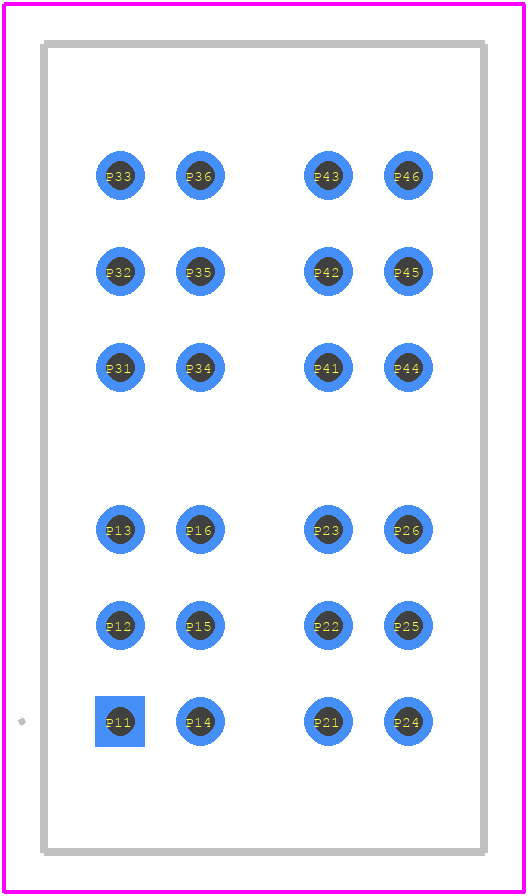

PCB Footprints
2169809-1 - TE Connectivity PCB footprint - Other - Other - 2169809-1-4
click to zoom
3D Models
2169809-1 - TE Connectivity - 3D model - Other - 2169809-1-4
click to zoom

2169809-1 Details

  • Manufacturer Part Number:

    2169809-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.27

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    20A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    20 A

  • Rated Voltage:

    48 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.098 inch

  • Terminal Pitch:

    5.2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

2169809-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 2169809-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2169809-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2169809-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The 2169809-1 connector has a mating cycle life of at least 500 cycles. However, this may vary depending on the application, usage, and environmental conditions. Consult TE Connectivity's documentation and technical support for more information.
