Part Image

2170703-1 - TE Connectivity

Description: QSFP28/56, Cage, Signal, Operating Temperature Range -55 – 105 °C [-67 – 221 °F], Data Rate (Max) 28 Gb/s, 1 Ports, Port Matrix Configuration 1 x 1

Download 2170703-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2170703-1 - TE Connectivity - PCB symbol
click to zoom

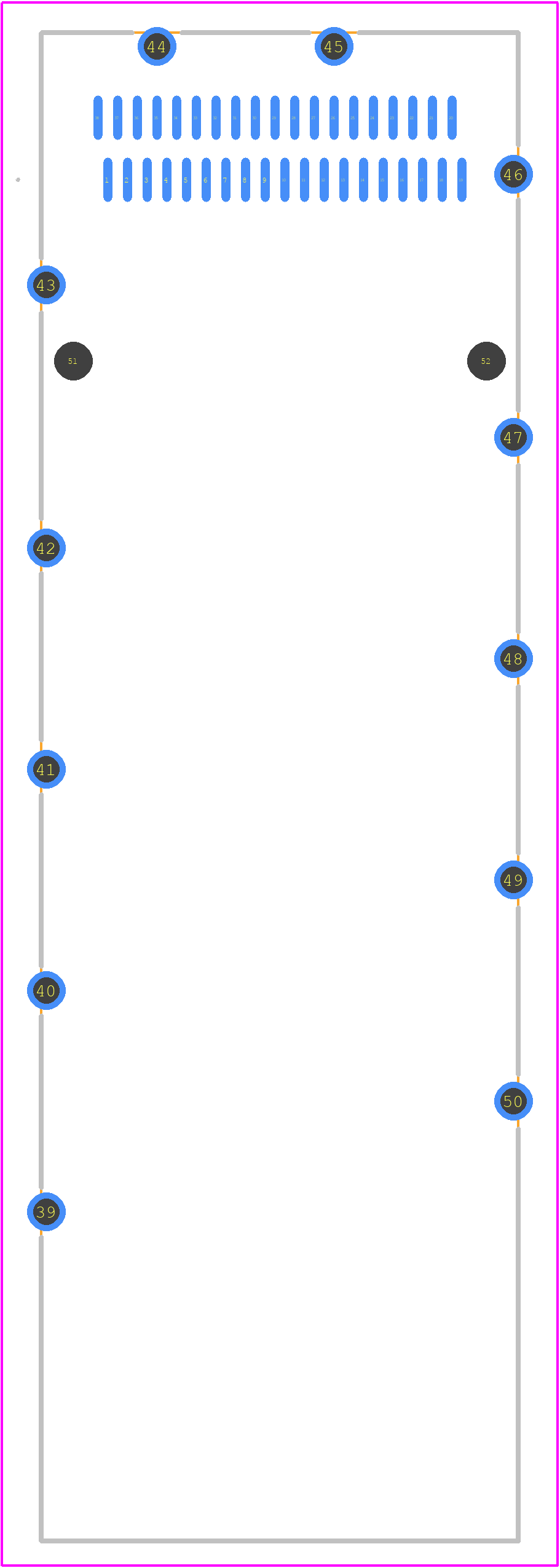

PCB Footprints
2170703-1 - TE Connectivity PCB footprint - Other - Other - 2170703-1-1
click to zoom
3D Models
2170703-1 - TE Connectivity - 3D model - Other - 2170703-1-1
click to zoom

2170703-1 Details

  • Manufacturer Part Number:

    2170703-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    STANDARD: UL 94V-0

  • Approvals:

    UL

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • Design Use:

    SIGNAL

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    PRESS FIT

  • Wire Gauge:

    0 AWG

2170703-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2170703-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes AWG 18-26 with some adjustments to the wire stripping length and insulation diameter.
  • The operating temperature range for the 2170703-1 connector is -40°C to 125°C (-40°F to 257°F).
  • The connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to apply a sealant or conformal coating for added protection in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2170703-1 Overview

Use the download button to access the 2170703-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21707, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
