2170704-5 - TE Connectivity

Description: Body Features: Heat Sink Height Class SAN | Heat Sink Height .256 INCH | Heat Sink Style Pin | Heat Sink Finish Anodized Black | Configuration Features: Port Matrix Configuration 1 x 1 | Number of Ports 1 | Number of Rear EONs per Port Column 0 | Contact Features: PCB Contact Termination Area Plating Material Tin | Dimensions: PCB Thickness (Recommended) .062 INCH | PCB Thickness (Recommended) 1.57 MM | Electrical Characteristics: Data Rate (Max) 28 GBS | Housing Features: Cage Material Nickel Silver | Indu

Download 2170704-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2170704-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

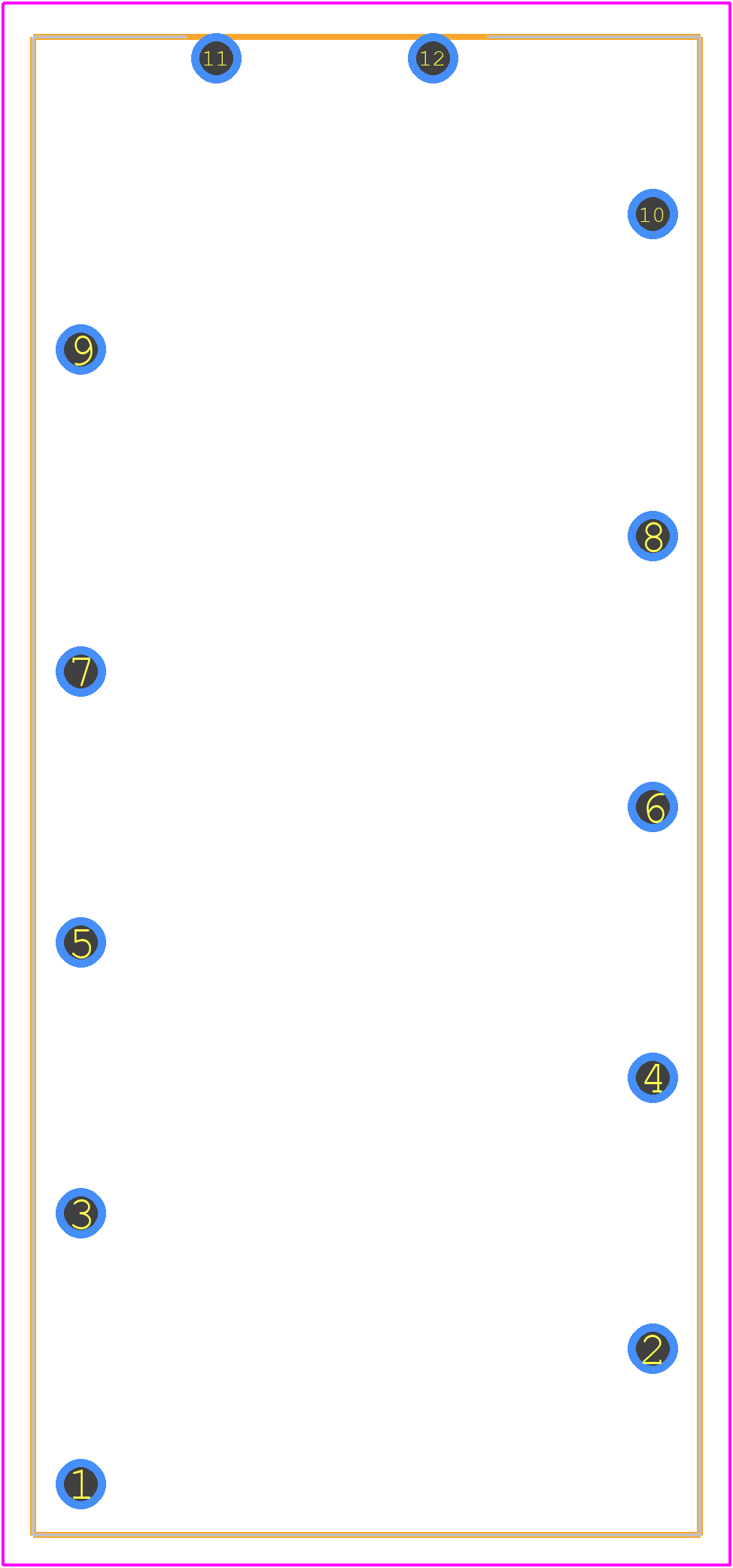

2170704-5 - TE Connectivity PCB footprint - Other - Other - 2170704-5-3
click to zoom
3D Models
2170704-5 - TE Connectivity - 3D model - Other - 2170704-5-3
click to zoom

2170704-5 Details

  • Manufacturer Part Number:

    2170704-5

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Manufacturer:

    TE Connectivity

  • Approvals:

    UL

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • Design Use:

    SIGNAL

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Type:

    COMPLIANT FIT

  • Used With:

    QSFP28 CABLE ASSEMBLY AND QSFP28 MSA

  • Wire Gauge:

    0 AWG

2170704-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2170704-5 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand high humidity environments, making it suitable for use in harsh industrial and outdoor applications.
  • The maximum current rating for the 2170704-5 connector is 3A per contact, but it's recommended to derate the current based on the application's specific requirements and environmental conditions.
  • The 2170704-5 connector is suitable for both power and signal transmission applications, thanks to its low contact resistance and high-reliability design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2170704-5 Overview

Use the download button to access the 2170704-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21707, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
