2174803-2 - TE Connectivity

Description: Body Features: Ejector Type Push-Push | Primary Product Color Black | Configuration Features: Card Detection Switch With | Number of Loaded Positions 6 | Number of Positions 6 | Card Insertion Style Normal Insertion | Contact Features: Contact Mating Retention Without | Contact Current Rating (Max) .5 AMP | Contact Base Material Copper Alloy | Dimensions: Profile Height from PCB 1.3 MM | Profile Height from PCB .051 INCH | Electrical Characteristics: Current Rating (Max) .5 AMP | Voltage Rating 10 VAC | Hou

Download 2174803-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

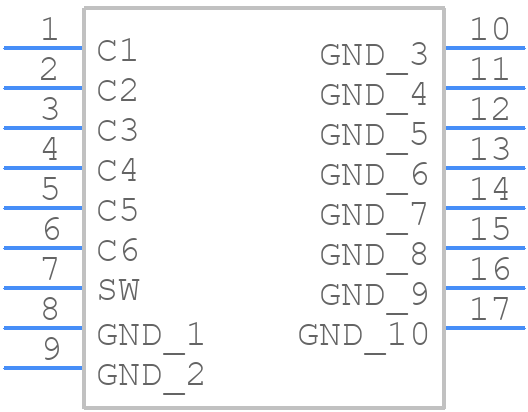

2174803-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

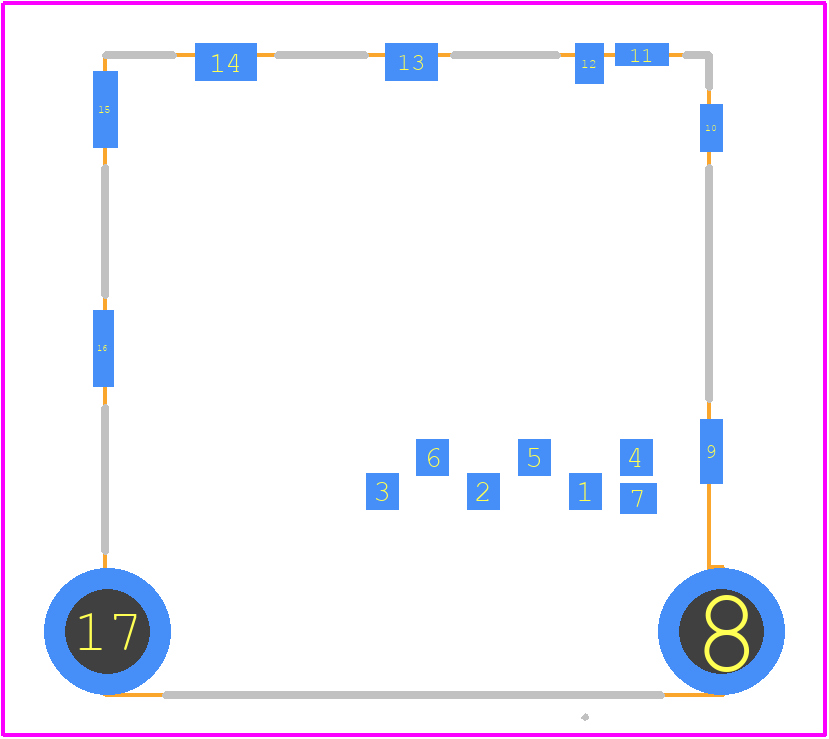

2174803-2 - TE Connectivity PCB footprint - Other - Other - 2174803-2-8
click to zoom
3D Models
2174803-2 - TE Connectivity - 3D model - Other - 2174803-2-8
click to zoom

2174803-2 Details

  • Manufacturer Part Number:

    2174803-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.05 inch

  • Body Depth:

    0.051 inch

  • Body Length:

    0.594 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    150 mΩ

  • DIN Conformance:

    NO

  • Durability:

    1500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Shell Material:

    STAINLESS STEEL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

2174803-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2174803-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2174803-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's recommended to follow TE Connectivity's PCB layout guidelines to ensure proper clearance, spacing, and thermal management. Consult their application notes and design guides for more information.
  • The 2174803-2 connector is designed to withstand some environmental stressors, but it's essential to consult TE Connectivity's environmental testing data and application notes to determine its suitability for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2174803-2 Overview

Use the download button to access the 2174803-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21748, or try a keyword search, such as Headers and Edge Type Connectors
