218-105 - Wago

Description: Conn Terminal Block 5 POS 2.5mm Solder RA Thru-Hole 4A Box

Download 218-105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
218-105 - Wago - PCB symbol
click to zoom
PCB Footprints

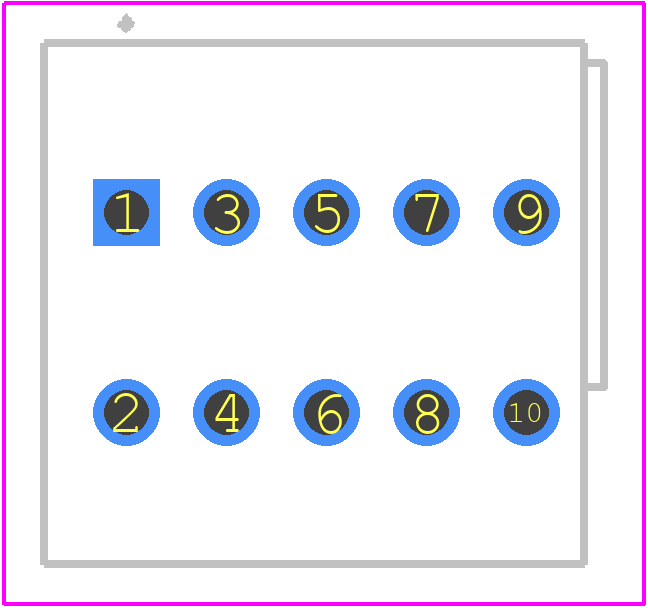

218-105 - Wago PCB footprint - Other - Other - 218-105-1
click to zoom
3D Models
218-105 - Wago - 3D model - Other - 218-105-1
click to zoom

218-105 Details

  • Manufacturer Part Number:

    218-105

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, PA66

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    6 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

218-105 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the WAGO application notes.
  • Yes, the 218-105 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 218-105 connector has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 218-105 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm².
  • The operating temperature range of the 218-105 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
