218-108 - Wago

Description: Conn Terminal Block 8 POS 2.5mm Solder ST Thru-Hole 4A Box

Download 218-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
218-108 - Wago - PCB symbol
click to zoom
PCB Footprints

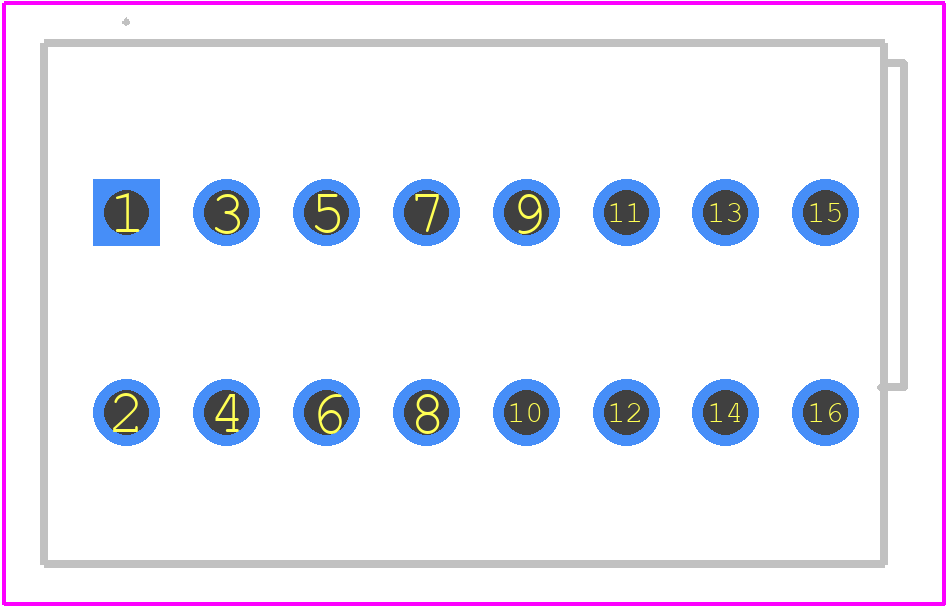

218-108 - Wago PCB footprint - Other - Other - 218-108-1
click to zoom
3D Models
218-108 - Wago - 3D model - Other - 218-108-1
click to zoom

218-108 Details

  • Manufacturer Part Number:

    218-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    PA66, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    80 V

  • Safety Approval:

    CCA; CSA; KEMA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

218-108 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) according to WAGO's application notes.
  • Yes, the 218-108 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 2, which includes vibration testing up to 10 g acceleration.
  • Yes, the 218-108 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • Yes, the 218-108 connector is designed to accept stranded wires with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG). However, it's recommended to use wires with a minimum strand count of 10 to ensure reliable connections.
  • Yes, the 218-108 connector is part of WAGO's TOPJOB S family of connectors, which are designed to be compatible with each other. You can mate the 218-108 connector with other TOPJOB S connectors, such as the 218-110 or 218-112.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

218-108 Overview

Use the download button to access the 218-108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 218-1, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to 218-108
