The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to follow the manufacturer's guidelines to avoid damaging the connector or PCB.
Yes, the 218-112 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
The 218-112 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional protection measures.
While the datasheet specifies a wire size range of 0.5 mm² to 2.5 mm², it's possible to use the connector with smaller or larger wire sizes. However, this may affect the connector's performance and reliability. Consult with WAGO's technical support or a qualified engineer to determine the feasibility of using the connector with non-standard wire sizes.
Follow WAGO's recommended wire stripping and insulation guidelines, which typically involve stripping the wire to a length of 5 mm to 7 mm and ensuring the insulation is not damaged during the process. Improper wire stripping and insulation can lead to connector failure or electrical issues.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
218-112 Overview

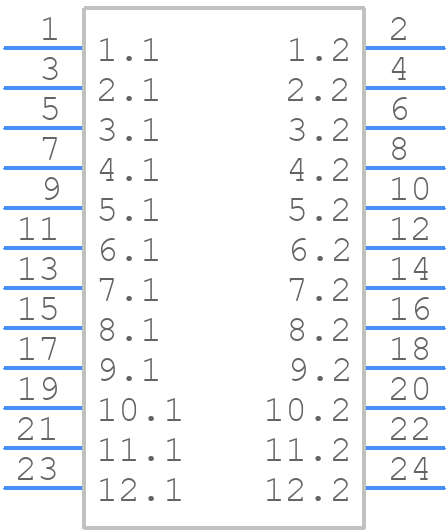

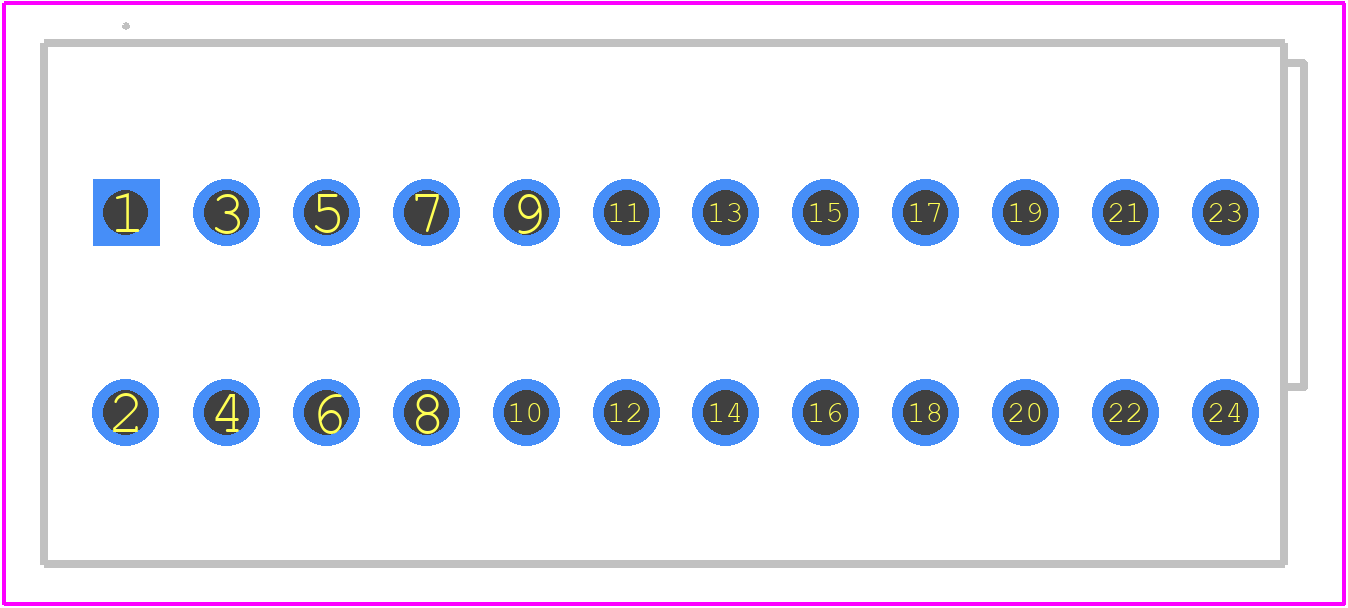

Use the download button to access the 218-112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 218-1,
or try a keyword search, such as Terminals and Terminal Blocks
