218-508 - Wago

Description: PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.54 mm; 8-pole; CAGE CLAMP®; 0,50 mm²; gray

Download 218-508 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
218-508 - Wago - PCB symbol
click to zoom
PCB Footprints

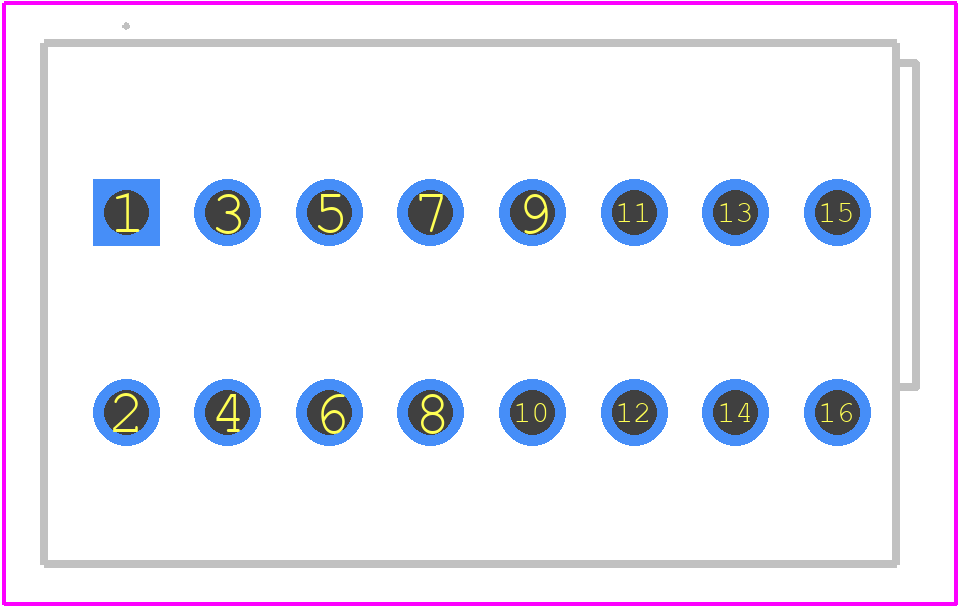

218-508 - Wago PCB footprint - Other - Other - 218-508-1
click to zoom
3D Models
218-508 - Wago - 3D model - Other - 218-508-1
click to zoom

218-508 Details

  • Manufacturer Part Number:

    218-508

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

218-508 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 218-508 connector is suitable for use with stranded wires, but make sure to follow the recommended wire preparation and termination procedures.
  • Yes, the 218-508 connector is designed to withstand vibration and shock according to IEC 61373 and EN 50155 standards.
  • The 218-508 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand high humidity, but make sure to follow the recommended installation and maintenance procedures.
  • Yes, the 218-508 connector meets the requirements of UL 310 and CSA C22.2 No. 198.1 standards for safety and performance.
