218-512 - Wago

Description: PCB terminal block, Locking slides, 0.5 mm2, Pin spacing 2.54 mm, 12-pole, Cage Clamp

Download 218-512 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

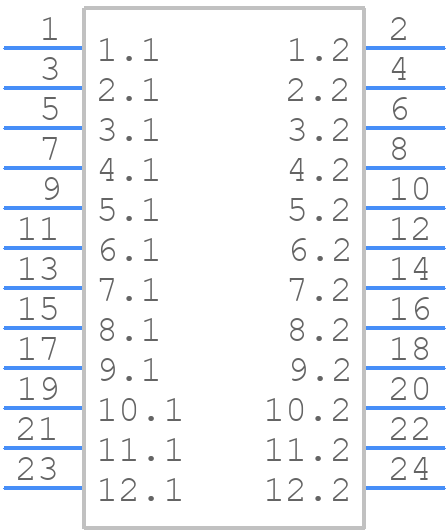

218-512 - Wago - PCB symbol
click to zoom
PCB Footprints

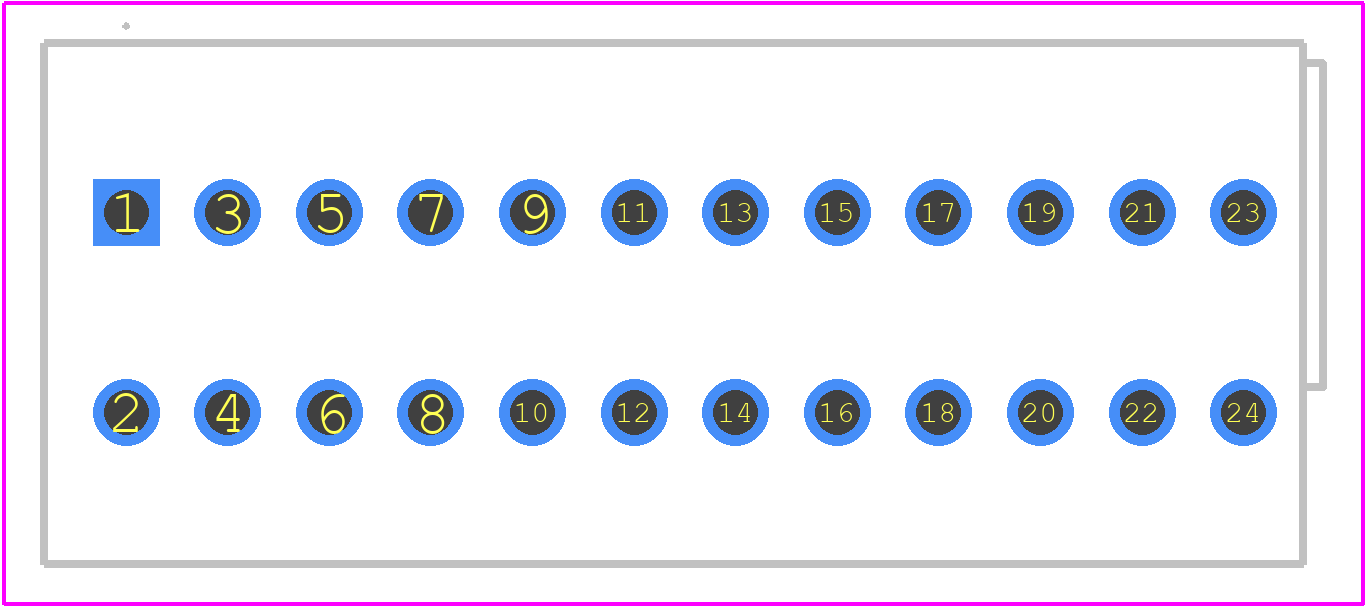

218-512 - Wago PCB footprint - Other - Other - 218-512-1
click to zoom
3D Models
218-512 - Wago - 3D model - Other - 218-512-1
click to zoom

218-512 Details

  • Manufacturer Part Number:

    218-512

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    PA6.6, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CCA; CSA; KEMA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG
