218-524 - Wago

Description: PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.54 mm; 24-pole; CAGE CLAMP®; 0,50 mm²; gray

Download 218-524 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

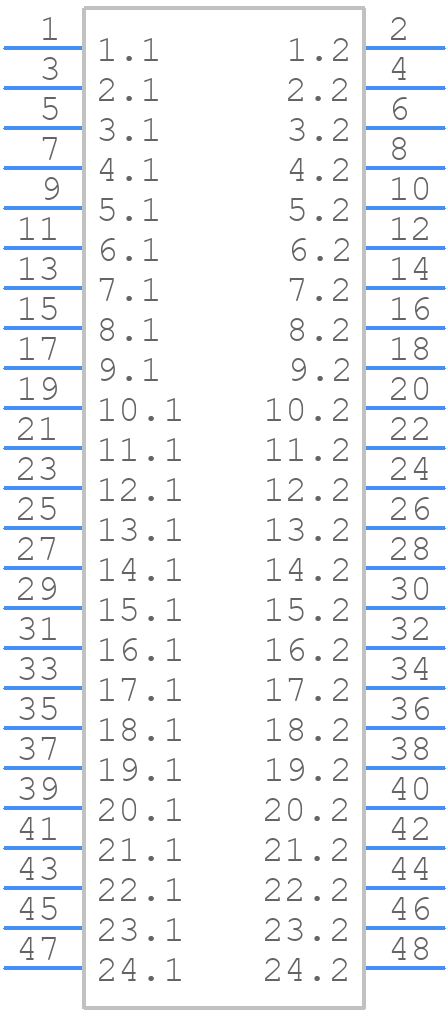

218-524 - Wago - PCB symbol
click to zoom
PCB Footprints

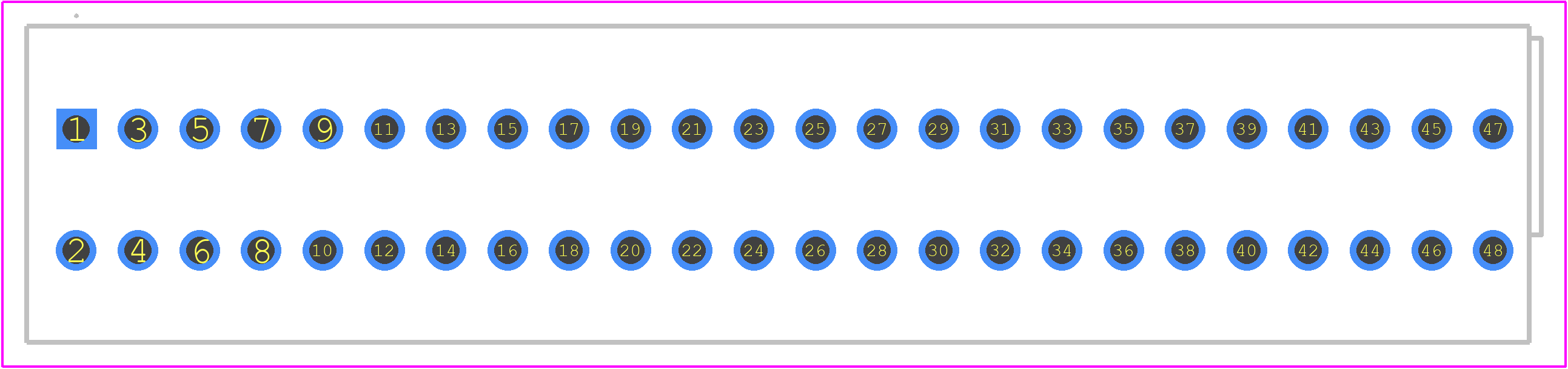

218-524 - Wago PCB footprint - Other - Other - 218-524-2
click to zoom
3D Models
218-524 - Wago - 3D model - Other - 218-524-2
click to zoom

218-524 Details

  • Manufacturer Part Number:

    218-524

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    24

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

218-524 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the WAGO 218-524 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's essential to ensure proper mounting and screwing to prevent damage.
  • The WAGO 218-524 has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional protection measures.
  • The WAGO 218-524 is rated for operating temperatures between -40°C and 105°C. However, the maximum temperature rating may vary depending on the specific application and the materials used in the connector and PCB.
  • The WAGO 218-524 is designed for wires with a maximum diameter of 1.5 mm² (AWG 16). Using larger wires may compromise the connector's reliability and performance.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

218-524 Overview

Use the download button to access the 218-524 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 218-5, or try a keyword search, such as Terminals and Terminal Blocks
