2180851-4 - TE Connectivity

Description: Configuration Features: Number of Columns 2 | PCB Mount Orientation Right Angle | Stackable No | Number of Positions 4 | Backplane Architecture Orthogonal | Contact Features: Contact Current Rating (Max) 15 AMP | Dimensions: PCB Hole Diameter .029 INCH | PCB Hole Diameter .73 MM | Electrical Characteristics: Operating Voltage 48 VDC | Housing Features: Centerline (Pitch) 5.2 MM | Centerline (Pitch) .205 INCH | Housing Color Black | Housing Material LCP (Liquid Crystal Polymer) | Industry Standards: UL Flamm

Download 2180851-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2180851-4 - TE Connectivity - PCB symbol
click to zoom

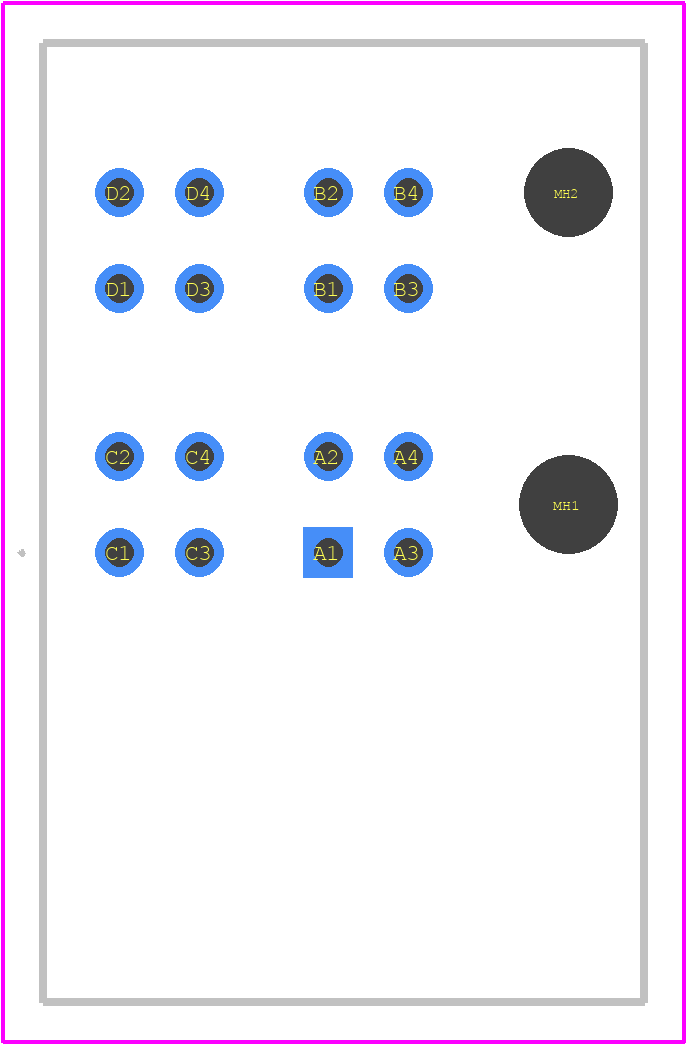

PCB Footprints
2180851-4 - TE Connectivity PCB footprint - Other - Other - 2180851-4-5
click to zoom
3D Models
2180851-4 - TE Connectivity - 3D model - Other - 2180851-4-5
click to zoom

2180851-4 Details

  • Manufacturer Part Number:

    2180851-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.27

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    15 A

  • Rated Voltage:

    48 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.098 inch

  • Terminal Pitch:

    5.2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

2180851-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2180851-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2180851-4 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environmental applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, to ensure reliable operation and prevent damage to the connector, follow these PCB design guidelines: maintain a minimum clearance of 1.5 mm around the connector, use a solder mask to prevent solder bridging, and ensure the PCB material can withstand the operating temperatures and humidity levels.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2180851-4 Overview

Use the download button to access the 2180851-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21808, or try a keyword search, such as Power Connectors
