2180CL08-U - THAT CORPORATION

Description: Audio Amplifiers Pre-Trimmed VCA SIP-8

Download 2180CL08-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

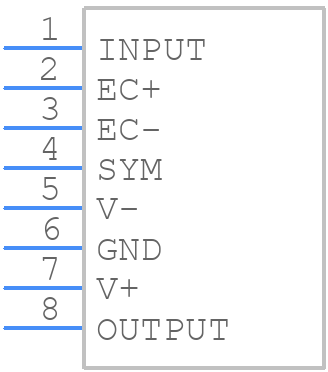

Symbol
2180CL08-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
2180CL08-U - THAT CORPORATION PCB footprint - Other - Other - 2180CL08-U-2
click to zoom
3D Models
2180CL08-U - THAT CORPORATION - 3D model - Other - 2180CL08-U-2
click to zoom

2180CL08-U Details

  • Manufacturer Part Number:

    2180CL08-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    THAT Corporation

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • JESD-30 Code:

    R-PSIP-T8

  • JESD-609 Code:

    e4

  • Length:

    19.5 mm

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    7.2 mm

  • Slew Rate-Nom:

    12 V/us

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Unity Gain BW-Nom:

    20000

  • Width:

    2.8 mm

2180CL08-U Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 2180CL08-U is -40°C to +85°C.
  • To ensure proper biasing, follow the recommended voltage supply and current requirements outlined in the datasheet, and use a stable voltage reference. Additionally, ensure the input and output pins are properly terminated and matched to the desired impedance.
  • The maximum power dissipation for the 2180CL08-U is 1.4W. It's essential to ensure proper heat sinking and thermal management to prevent overheating and damage to the device.
  • The 2180CL08-U is a commercial-grade device, but THAT Corporation offers a high-reliability version, the 2180HL08-U, which is designed for high-reliability and aerospace applications. Consult with THAT Corporation or a qualified representative for more information.
  • To troubleshoot common issues, start by verifying the device is properly biased and terminated. Check for proper power supply decoupling, and ensure the input and output signals are within the recommended specifications. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2180CL08-U Overview

Use the download button to access the 2180CL08-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2180C, or try a keyword search, such as Operational Amplifiers
