2189101115 - Molex

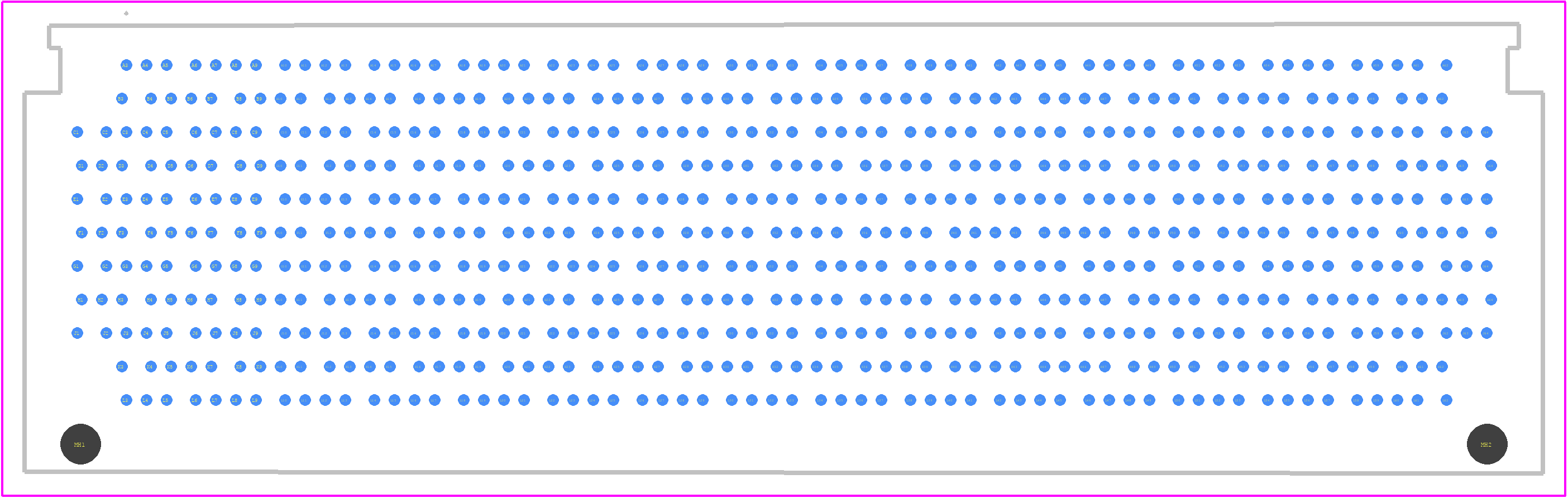

2189101115 Details

• Manufacturer Part Number:

  2189101115

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• Board Mounting Option:

  HOLE 0.071

• Body Breadth:

  0.791 inch

• Body Depth:

  0.183 inch

• Body Length:

  2.677 inch

• Body/Shell Style:

  HERMAPHRODITIC

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  HERMAPHRODITIC

• Contact Pattern:

  MIXED

• Contact Resistance:

  30 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.5 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  DARK GRAY

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.059 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  11

• Number of Rows Loaded:

  11

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  MIXED

• PCB Contact Row Spacing:

  1.5 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.2 A

• Reference Standard:

  CSA; UL

• Terminal Pitch:

  0.9 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  688

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.045 N
