219-10LPST - CTS

Description: DIP Switches / SIP Switches SPST 10 switch sections

Download 219-10LPST Model

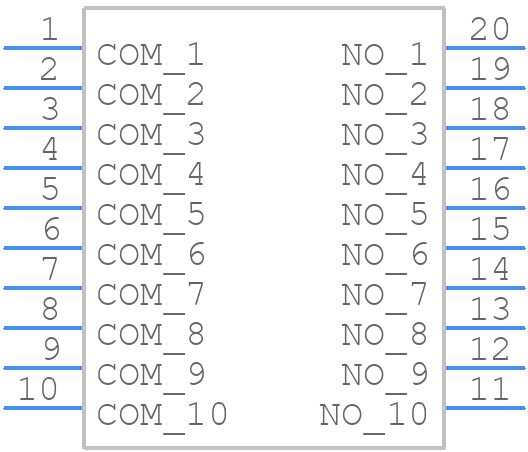

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

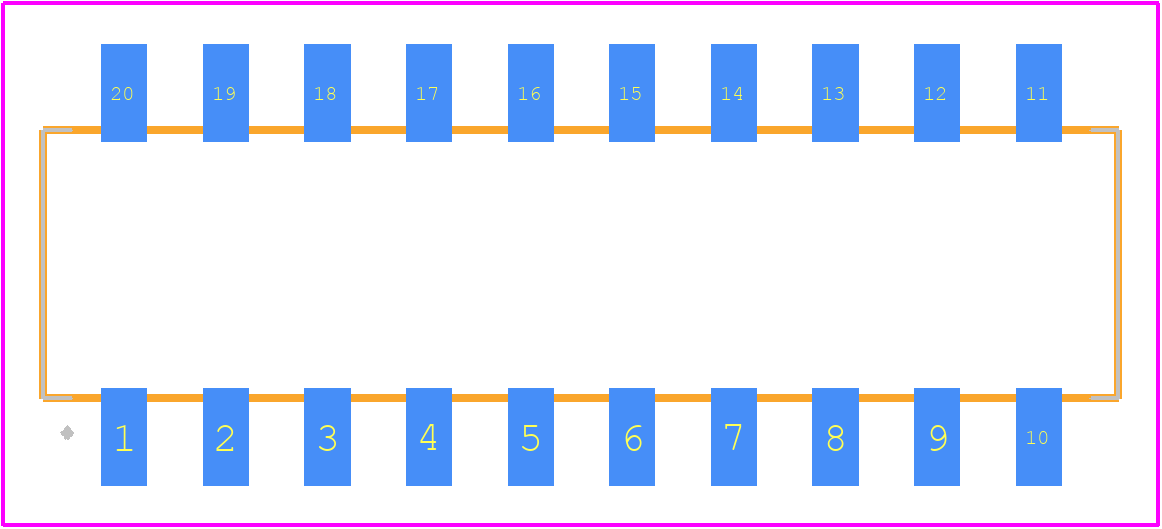

219-10LPST - CTS PCB footprint - Other - Other - 219-10LPST-3
click to zoom
3D Models
219-10LPST - CTS  - 3D model - Other - 219-10LPST-3
click to zoom

219-10LPST Details

  • Manufacturer Part Number:

    219-10LPST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    CTS Corporation

  • Risk Rank:

    1.69

  • YTEOL:

    7.3

  • Actuator Material:

    POLYETHYLENE

  • Actuator Type:

    FLUSH TYPE

  • Additional Feature:

    APPROVAL: UL; LOW PROFILE

  • Body Breadth:

    6.7 mm

  • Body Height:

    4.05 mm

  • Body Length or Diameter:

    26.87 mm

  • Center Contact Material:

    BERYLLIUM COPPER

  • Center Contact Plating:

    GOLD

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@20VDC

  • Contact Function:

    ON-OFF

  • Contact Resistance:

    0.025 mΩ

  • Contact Voltage(DC)-Max:

    20 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    2000 Cycle(s)

  • End Contact Material:

    BERYLLIUM COPPER

  • End Contact Plating:

    GOLD

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switch Sections:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TUBE

  • Sealing:

    BOTTOM SEALED; TOP TAPE SEALED

  • Solderability:

    WAVE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER
