The recommended PCB layout and land pattern for the 219-12LPST can be found in the CTS Corporation's application note AN-103, which provides guidelines for optimal performance and thermal management.
The 219-12LPST is designed to operate in temperatures up to 125°C, but its performance may degrade above 100°C. For high-temperature applications, consider using a thermally-enhanced package or a heat sink to maintain optimal performance.
The maximum allowable voltage for the 219-12LPST is 12V, but it's recommended to operate within the specified voltage range of 9V to 12V for optimal performance and reliability.
The 219-12LPST is designed for low-frequency applications, but it can be used in high-frequency applications up to 100 kHz with proper PCB design and layout considerations. However, it's recommended to consult with a CTS Corporation application engineer for specific guidance.
The 219-12LPST should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps and mats to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
219-12LPST Overview

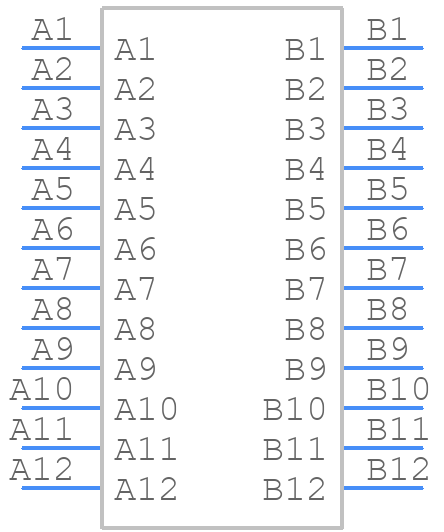

Use the download button to access the 219-12LPST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 219-1,
or try a keyword search, such as DIP Switches
