2198227-4 - TE Connectivity

Description: SFP+, Cage Assembly, Sealable, Signal, Operating Temperature Range -55 – 105 °C [-67 – 221 °F], Data Rate (Max) 16 Gb/s, 6 Ports

Download 2198227-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2198227-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

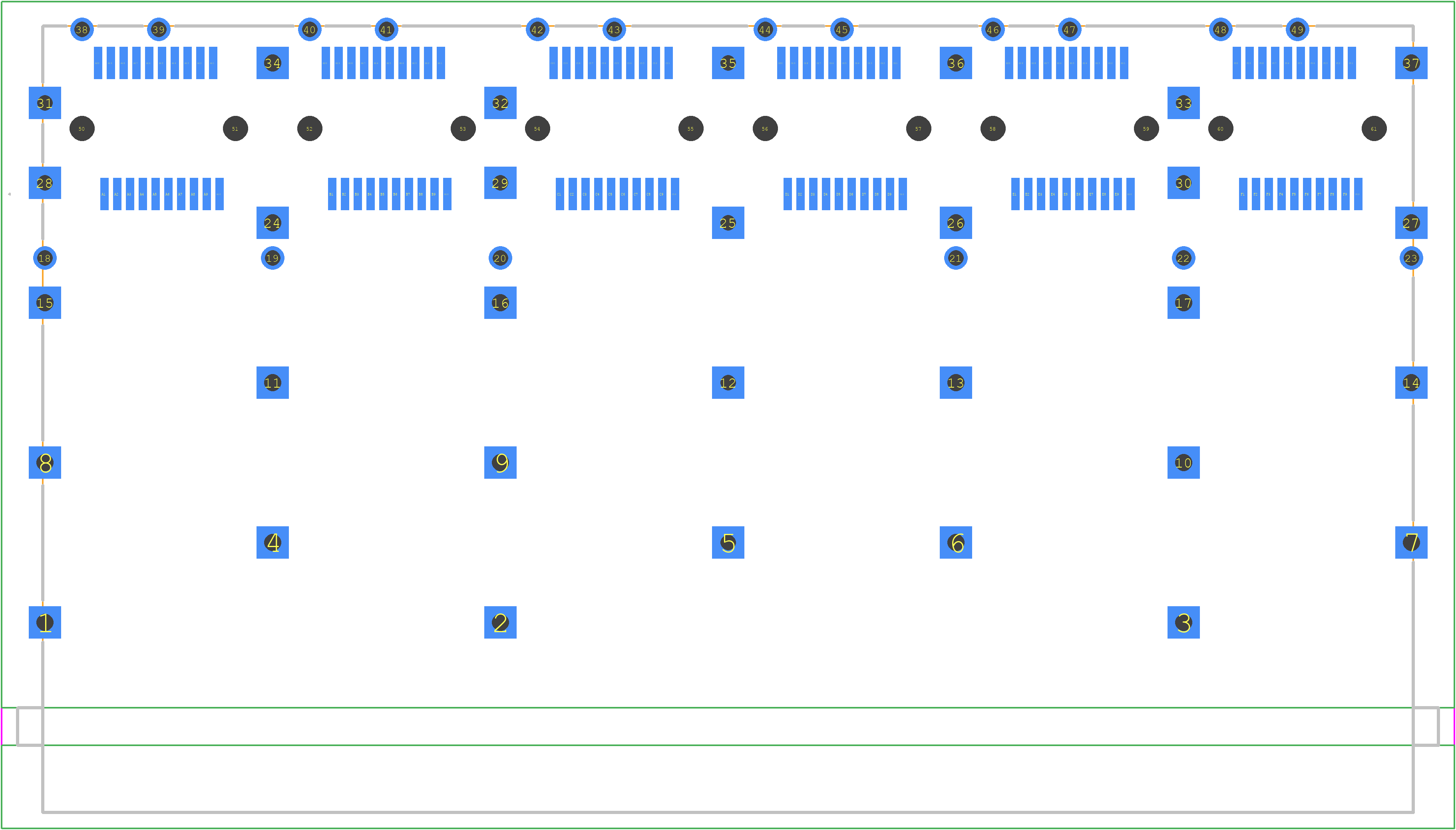

2198227-4 - TE Connectivity PCB footprint - Other - Other - 2198227-4-1
click to zoom
3D Models
2198227-4 - TE Connectivity - 3D model - Other - 2198227-4-1
click to zoom

2198227-4 Details

  • Manufacturer Part Number:

    2198227-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Design Use:

    SIGNAL

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2198227-4 Overview

Use the download button to access the 2198227-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 21982, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
