2198230-4 - TE Connectivity

Description: Body Features: Heat Sink Height 13.5 MM | Heat Sink Height Class Networking Tall | Heat Sink Style Pin | Heat Sink Height .531 INCH | Configuration Features: Port Matrix Configuration 1 x 2 | Number of Ports 2 | Dimensions: PCB Thickness (Recommended) .089 INCH | PCB Thickness (Recommended) 2.25 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Circuit Application Signal | Pluggable I/O Applications SFP+ Enhanced | Heat Sink Comp

Download 2198230-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2198230-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

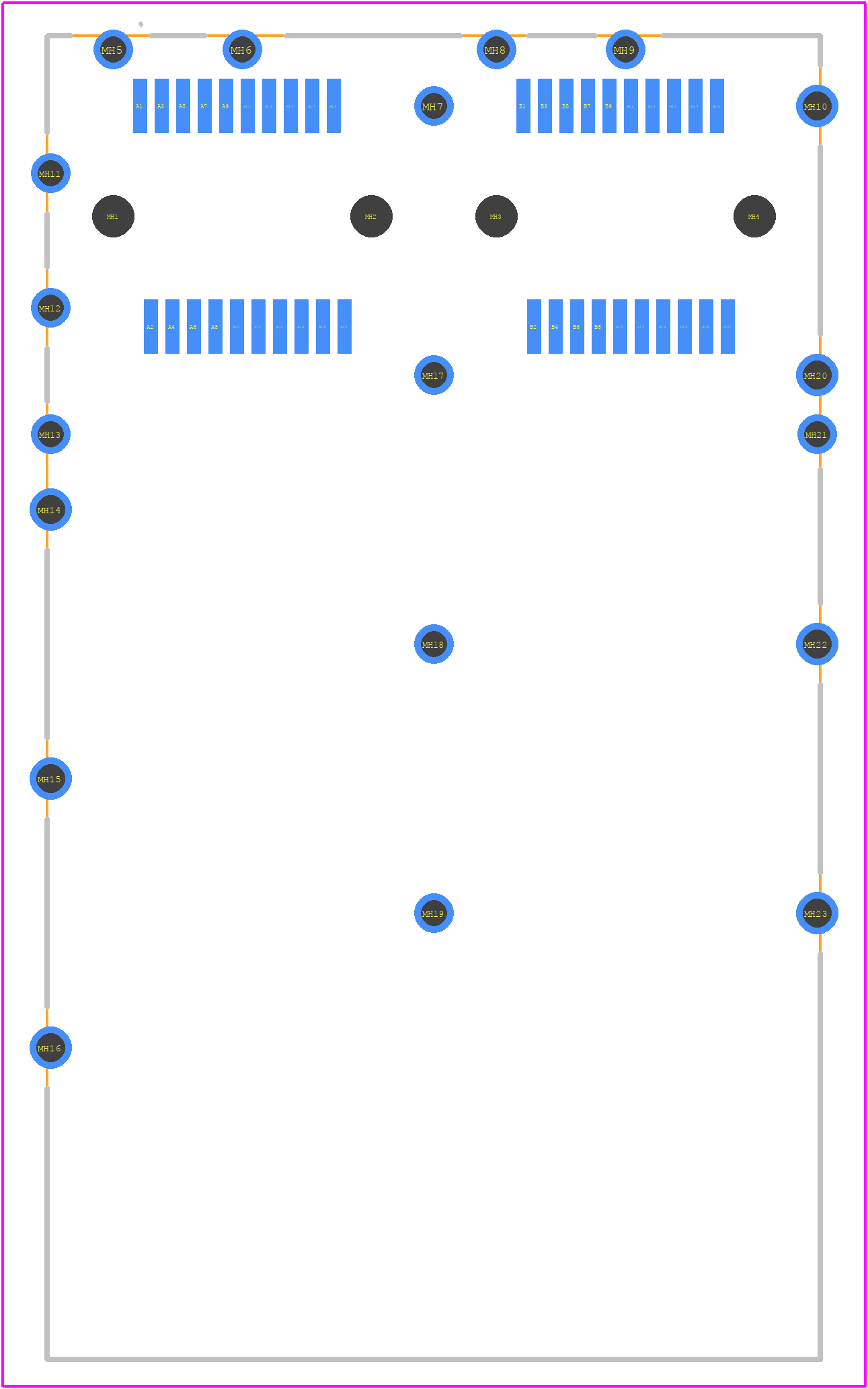

2198230-4 - TE Connectivity PCB footprint - Other - Other - 2198230-4-5
click to zoom
3D Models
2198230-4 - TE Connectivity - 3D model - Other - 2198230-4-5
click to zoom

2198230-4 Details

  • Manufacturer Part Number:

    2198230-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    4 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Design Use:

    SIGNAL

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG

2198230-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
  • Yes, the 2198230-4 connector is designed to withstand high-vibration environments, but it's crucial to follow proper mounting and installation procedures to ensure reliable performance.
  • The operating temperature range for the 2198230-4 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2198230-4 connector is designed for automated assembly and can be easily integrated into high-volume production lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2198230-4 Overview

Use the download button to access the 2198230-4 schematic symbol, PCB footprint, and 3D model.
