2198233-3 - TE Connectivity

Description: Body Features: Heat Sink Height 9.1 MM | Heat Sink Height .358 INCH | Heat Sink Height Class Networking Short | Heat Sink Style Pin | Configuration Features: Port Matrix Configuration 1 x 4 | Number of Ports 4 | Lightpipe Style Reduced Length | Dimensions: PCB Thickness (Recommended) .089 INCH | PCB Thickness (Recommended) 2.25 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Circuit Application Signal | Heat Sink Compatible Yes

Download 2198233-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2198233-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

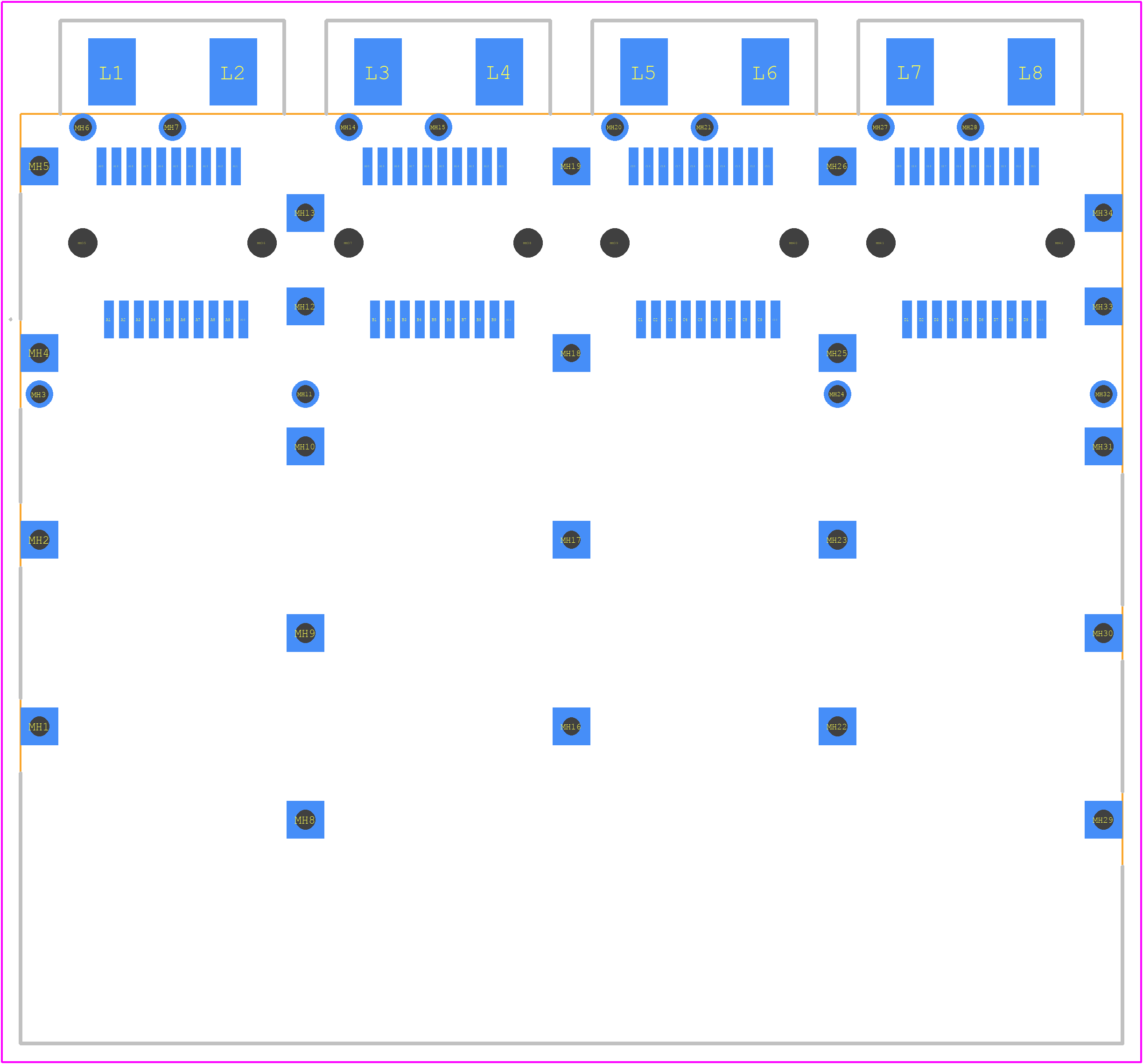

2198233-3 - TE Connectivity PCB footprint - Other - Other - 2198233-3-2
click to zoom
3D Models
2198233-3 - TE Connectivity - 3D model - Other - 2198233-3-2
click to zoom

2198233-3 Details

  • Manufacturer Part Number:

    2198233-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • Design Use:

    SIGNAL

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2198233-3 Overview

Use the download button to access the 2198233-3 schematic symbol, PCB footprint, and 3D model.
