2199337-5 - TE Connectivity

Description: Body Features: Primary Product Color Black | Ejector Type Push-Pull | Configuration Features: Number of Positions 8 | Card Detection Switch With | Card Insertion Style Normal Insertion | Number of Loaded Positions 8 | Contact Features: Contact Current Rating (Max) 1 AMP | Contact Mating Retention Without | Contact Base Material Copper Alloy | Dimensions: Profile Height from PCB 1.18 MM | Profile Height from PCB .046 INCH | Housing Features: Housing Material Thermoplastic | Centerline (Pitch) 2.54 MM | Cente

Download 2199337-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

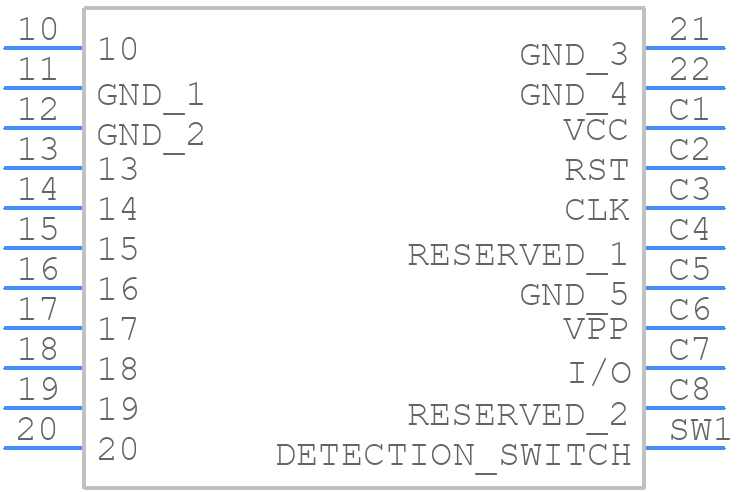

2199337-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2199337-5 - TE Connectivity PCB footprint - Other - Other - 2199337-5-2
click to zoom
3D Models
2199337-5 - TE Connectivity - 3D model - Other - 2199337-5-2
click to zoom

2199337-5 Details

  • Manufacturer Part Number:

    2199337-5

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.046 inch

  • Body Depth:

    0.046 inch

  • Body Length:

    0.524 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    80 mΩ

  • DIN Conformance:

    NO

  • Durability:

    5000 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    12u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2199337-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2199337-5 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2199337-5 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2199337-5 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and protection to maintain the connector's integrity in humid or wet environments.
  • The recommended wire size for the 2199337-5 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable connections. Consult TE Connectivity's application notes or contact their support for specific guidance.
