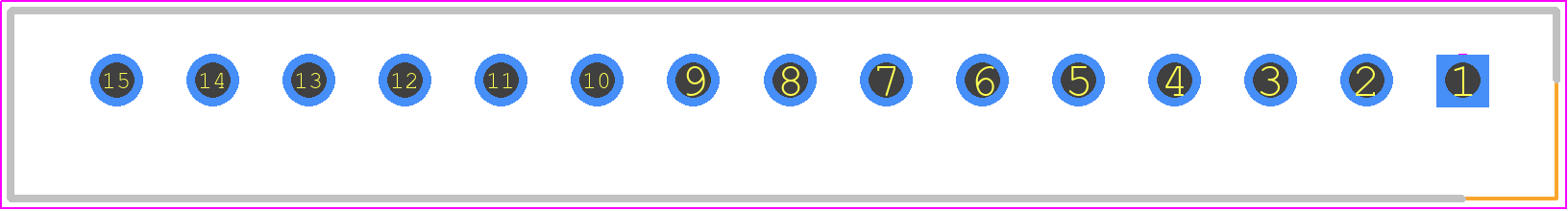

22-03-5155 - Molex

22-03-5155 Details

• Manufacturer Part Number:

  22-03-5155

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Hong Kong SAR, India, Ireland, Mainland China, Malaysia, South Korea, Taiwan, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  SPOX, POLARIZED, SHROUDED

• Body Breadth:

  0.193 inch

• Body Depth:

  0.232 inch

• Body Length:

  1.571 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  17.792 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.098 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  160u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL, CSA

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0
