22-05-1152 - Molex

Description: MOLEX - 22-05-1152 . - Pin Header, Signal, Wire-to-Board, 2.5 mm, 1 Rows, 15 Contacts, Through Hole Right Angle

Download 22-05-1152 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
22-05-1152 - Molex - PCB symbol
click to zoom
PCB Footprints

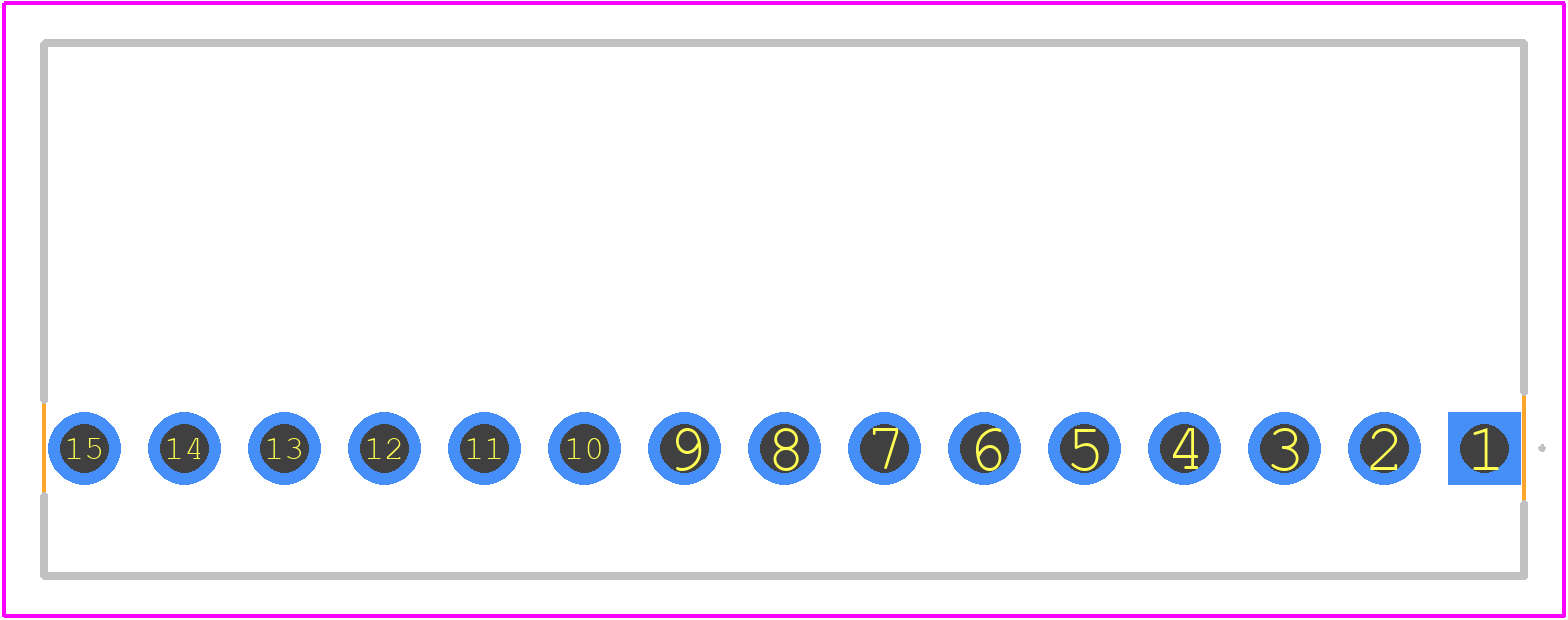

22-05-1152 - Molex PCB footprint - Other - Other - 22-05-1152-1
click to zoom
3D Models
22-05-1152 - Molex - 3D model - Other - 22-05-1152-1
click to zoom

22-05-1152 Details

  • Manufacturer Part Number:

    22-05-1152

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Brazil, Hong Kong SAR, Ireland, Japan, Mainland China, South Korea, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    3

  • Additional Feature:

    FRICTION LOCK

  • Body Breadth:

    0.236 inch

  • Body Length:

    1.457 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    1.946 N

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.098 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

22-05-1152 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4.4-13.3 in·lb) for the screws on the 22-05-1152 connector, as specified in the Molex application notes.
  • Yes, the 22-05-1152 connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and can be used in high-vibration applications, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • Yes, the 22-05-1152 connector is designed for automated assembly and can be used with pick-and-place machines, but it's recommended to consult with Molex for specific guidance on assembly and processing requirements.
  • The maximum operating temperature for the 22-05-1152 connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to consult with Molex for specific temperature requirements and derating guidelines for high-temperature applications.
  • The 22-05-1152 connector is designed to meet IP67 standards for ingress protection, but it's recommended to consult with Molex for specific guidance on environmental testing and to evaluate the connector's performance in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

22-05-1152 Overview

Use the download button to access the 22-05-1152 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 22-05, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
